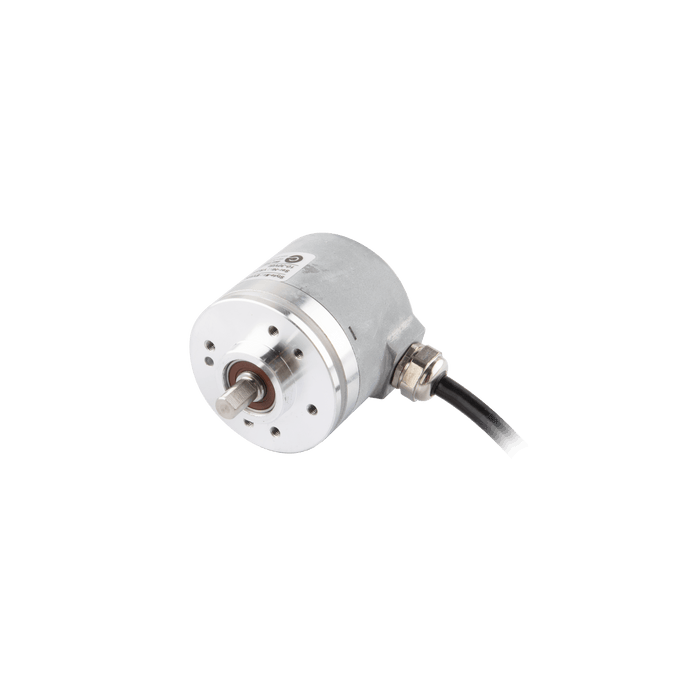

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange with synchronlange ditch, Shaft 6g6 mm, 5 VDC, Output TTL, Cable 0.5 m, Resoluteion 5000

Specifications

Pulse frequency 800 kHz
Connection type Cable outlet
Cable length 0.5 m
Weight 110 g
Model Incremental encoder
Housing material Al-alloy
Housing diameter 40 mm
IP rating IP66
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 6 mm
Max load capacity of the shaft 60 N Axial100 N R

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40A_V1.0_EN.pdf
3D Drawing CAD_E_EV40B6(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
