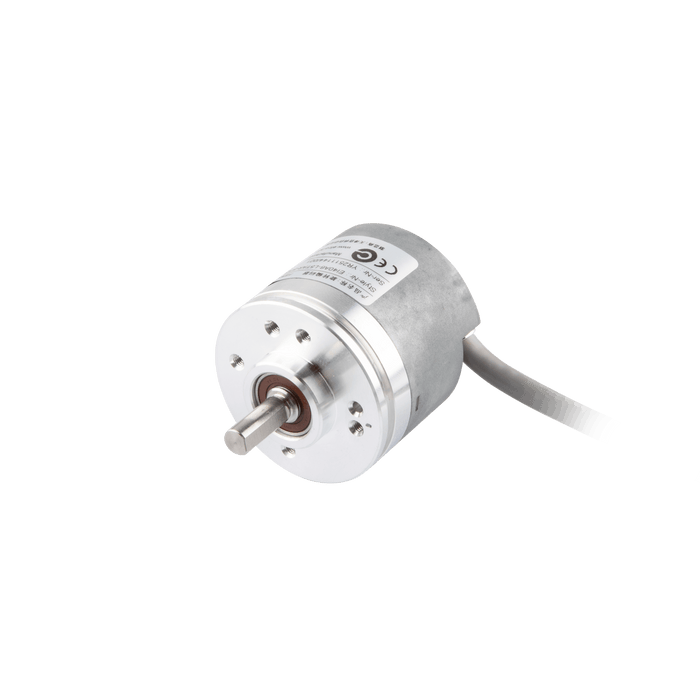

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange with synchronlange ditch, Shaft 6g6 mm, 10...30 VDC, Output Push-pull HTL (with inverted signal), Side prewired cable 1.5 m, Resoluteion 1024

EV40B6-H6PR-1024TP.CN0015

SKU EV40B6-H6PR-1024TP.CN0015
by ELCO Industrial Automation

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange with synchronlange ditch, Shaft 6g6 mm, 10...30 VDC, Output Push-pull HTL (with inverted signal), Side prewired cable 1.5 m, Resoluteion 1024

$109.50 - $109.50
$109.50
$109.50 - $109.50
$109.50
Availability:
In stock

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange with synchronlange ditch, Shaft 6g6 mm, 10...30 VDC, Output Push-pull HTL (with inverted signal), Side prewired cable 1.5 m, Resoluteion 1024

Specifications

IP rating IP66
Model Incremental encoder
Housing material Al-alloy
Housing diameter 40 mm
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 6 mm
Max load capacity of the shaft 60 N Axial100 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x 10-6 kgm2
Starting torque ＜ 0.08

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40A_V1.0_EN.pdf
3D Drawing CAD_E_EV40B6(R)-xxPR-xxxxTP_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
