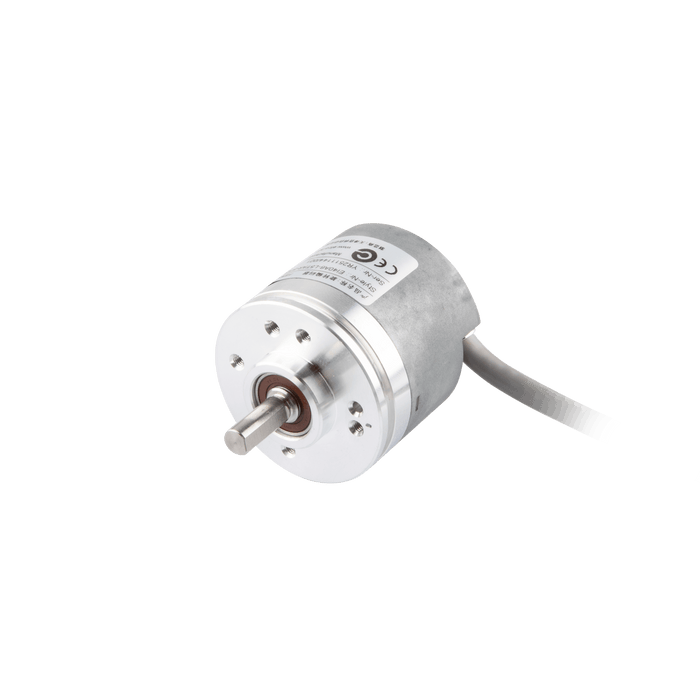

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull HTL (without inverted signal), Side prewired cable 2 m, Resoluteion 600

Specifications

Model Incremental encoder
Cable length 2 m
Shaft diameter 6 mm
Max load capacity of the shaft 60 N Axial100 N Radial
Moment of inertia 1.9 x 10-6 kgm2
Max Speed(rpm) 6000 rpm
Flange type Clamping flange
Shaft type Solid shaft
Shock resistance 50 g, 11 ms
Resolution 600 ppr
Connection type Cable

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40A_V1.0_EN.pdf
3D Drawing CAD_E_EV40A6(R)-xxPR-xxxxTP_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
