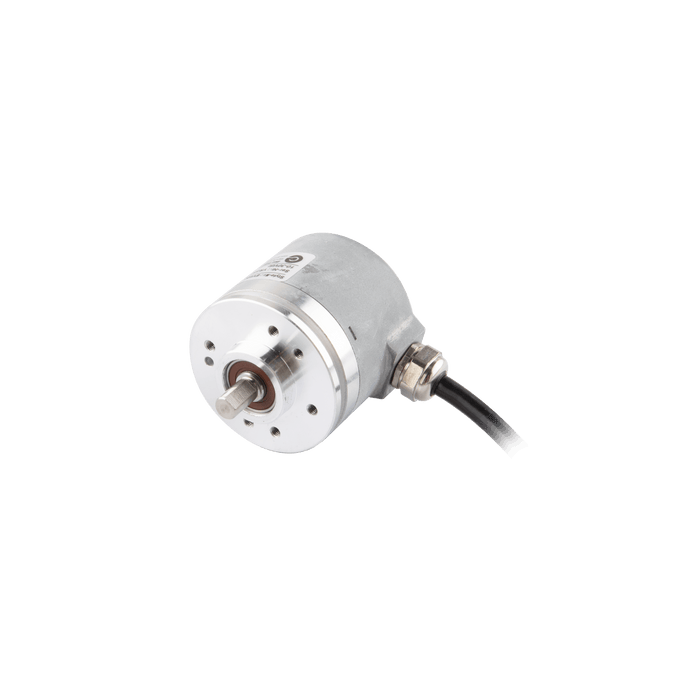

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange with synchronlange ditch, Shaft 6g6 mm, 5 VDC, Output TTL, Cable 0.5 m, Resoluteion 1000

EV40A6-L5PR-1000

SKU EV40A6-L5PR-1000
by ELCO Industrial Automation

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange with synchronlange ditch, Shaft 6g6 mm, 5 VDC, Output TTL, Cable 0.5 m, Resoluteion 1000

$100.42 - $100.42
$100.42
$100.42 - $100.42
$100.42
Availability:
In stock

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange with synchronlange ditch, Shaft 6g6 mm, 5 VDC, Output TTL, Cable 0.5 m, Resoluteion 1000

Specifications

Ambient temperature -20 ... +85 °C
Max Speed(rpm) 6000 rpm
Weight 110 g
Resolution 1000 ppr
Shaft type Solid shaft
Moment of inertia 1.9 x 10-6 kgm2
Shaft diameter 6 mm
Max load capacity of the shaft 60 N Axial100 N Radial
Flange type Clamping flange
Starting torque ＜ 0.08 Nm
Shock resistance 50

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40A_V1.0_EN.pdf
3D Drawing CAD_E_EV40A6(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
