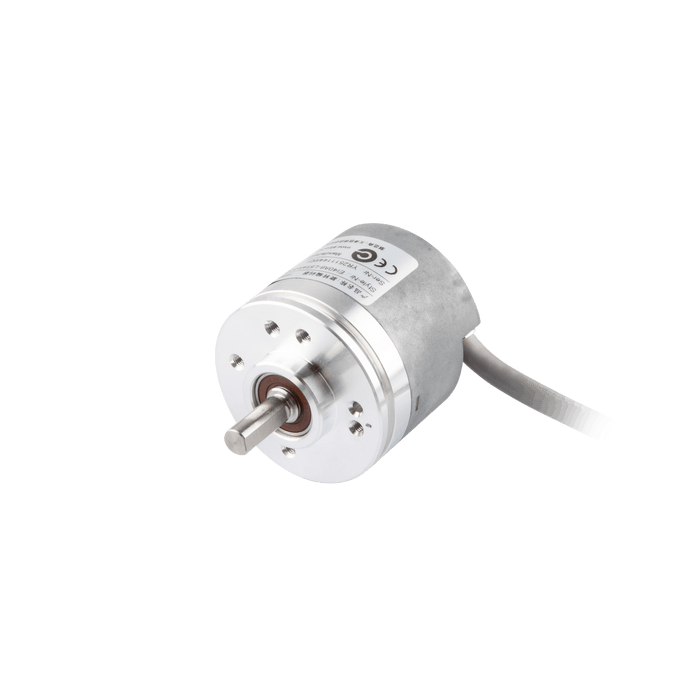

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull HTL (with inverted signal), Side prewired cable 5 m, Resoluteion 360

Specifications

Resolution 360 ppr
Supply voltage 10 ... 30 V DC
Output logic Push-pull HTL with inverted signal
Ambient temperature -20 ... +85 °C
Weight 110 g
Permissible load(channel) ±30 mA
Pulse frequency 800 kHz
Connection type Cable outlet
Cable length 5 m
Model Incremental encoder
Housing material Al-al

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40A_V1.0_EN.pdf
3D Drawing CAD_E_EV40A6(R)-xxPR-xxxxTP_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
