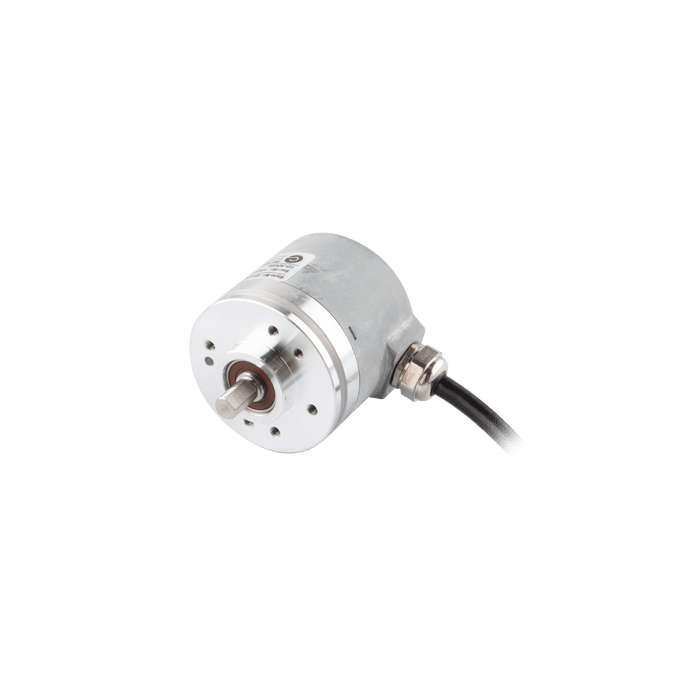

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull HTL (with inverted signal), Cable 10 m, Resoluteion 1000

EV40A6-H6PR-1000.CN0100

SKU EV40A6-H6PR-1000.CN0100
by ELCO Industrial Automation

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull HTL (with inverted signal), Cable 10 m, Resoluteion 1000

$118.95 - $118.95
$118.95
$118.95 - $118.95
$118.95
Availability:
In stock

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10...30 VDC, Output Push-pull HTL (with inverted signal), Cable 10 m, Resoluteion 1000

Specifications

Weight 110 g
Shaft diameter 6 mm
Relative humidity/condensation 90 % Condensation not permitted
Moment of inertia 1.9 x 10-6 kgm2
Max load capacity of the shaft 60 N Axial100 N Radial
Max Speed(rpm) 6000 rpm
Ambient temperature -20 ... +85 °C
Housing diameter 40 mm
Flange type Clamping flange

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV40A_V1.0_EN.pdf
3D Drawing CAD_E_EV40A6(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
