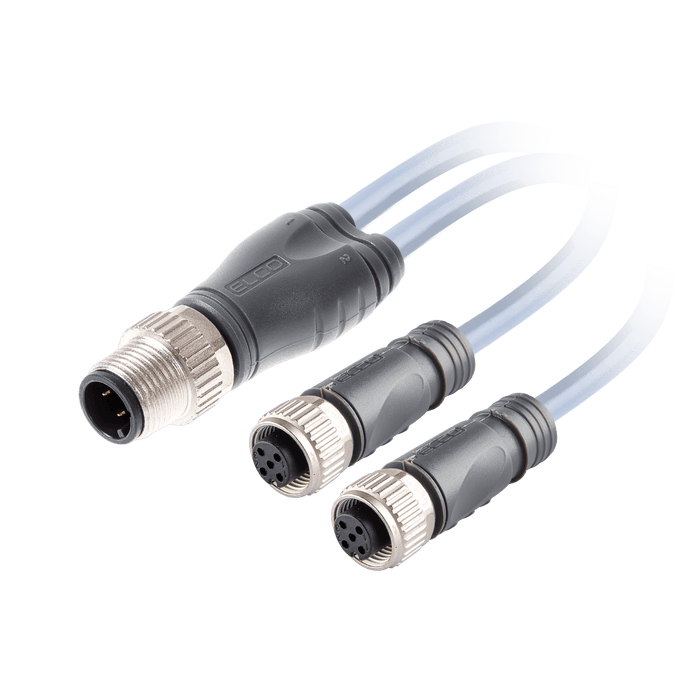

Y-Splitter, M12 A-code 4-pin Straight Male, to 2x M12 A-code 3-pin Straight Female, with PVC grey jacket 3 x 0.34mm² (22 AWG) Cable , 3 m/3 m

ECS-2CO12.4-3/3

SKU ECS-2CO12.4-3/3
by ELCO Industrial Automation

Y-Splitter, M12 A-code 4-pin Straight Male, to 2x M12 A-code 3-pin Straight Female, with PVC grey jacket 3 x 0.34mm² (22 AWG) Cable , 3 m/3 m

$23.48 - $23.48
$23.48
$23.48 - $23.48
$23.48
Availability:
In stock

Y-Splitter, M12 A-code 4-pin Straight Male, to 2x M12 A-code 3-pin Straight Female, with PVC grey jacket 3 x 0.34mm² (22 AWG) Cable , 3 m/3 m

Specifications

IP rating IP67
Cable length 3 m
The head material TPU
Cable jacket material PVC
Wire insulation material PVC
Drag chain Fixed installation
Wire insulation color BN,BU,BK
LED indicator NO
Coating contact material Gold-plated copper
Material contact TPU
Shielded/Unshielded No
Rated voltage 250 V

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_一分二连接器资料_Datasheet_CN.pdf
Datasheet ELCO_Y-splitter connector_Datasheet_EN.pdf
3D Drawing ELCO_ECS-2CO12.4-X-X.stp
