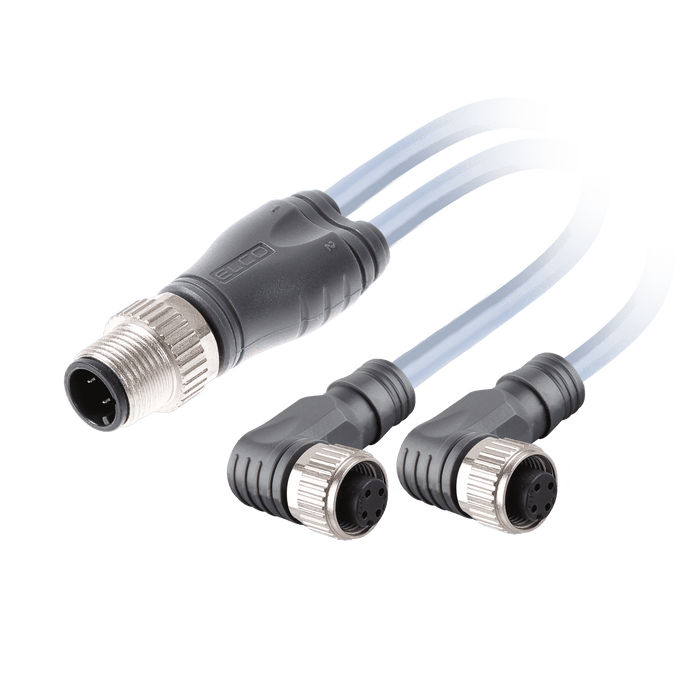

Y-Splitter, M12 A-code 4-pin Straight Male, to 2x M12 A-code 3-pin Angled Female, with PVC grey jacket 3 x 0.34mm² (22 AWG) Cable , 10 m/10 m

ECS-2CBO12.4-10/10

SKU ECS-2CBO12.4-10/10
by ELCO Industrial Automation

Y-Splitter, M12 A-code 4-pin Straight Male, to 2x M12 A-code 3-pin Angled Female, with PVC grey jacket 3 x 0.34mm² (22 AWG) Cable , 10 m/10 m

$35.67 - $35.67
$35.67
$35.67 - $35.67
$35.67
Availability:
In stock

Y-Splitter, M12 A-code 4-pin Straight Male, to 2x M12 A-code 3-pin Angled Female, with PVC grey jacket 3 x 0.34mm² (22 AWG) Cable , 10 m/10 m

Specifications

Wire insulation material PVC
IP rating IP67
Coating contact material Gold-plated copper
The head material TPU
Cable jacket material PVC
Cable length 10 m
Drag chain Fixed installation
Wire insulation color BN,BU,BK
LED indicator NO
Material contact TPU
Nut/bolt material Zinc die casting

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_一分二连接器资料_Datasheet_CN.pdf
Datasheet ELCO_Y-splitter connector_Datasheet_EN.pdf
3D Drawing ELCO_ECS-2CBO12.4-X-X.stp
