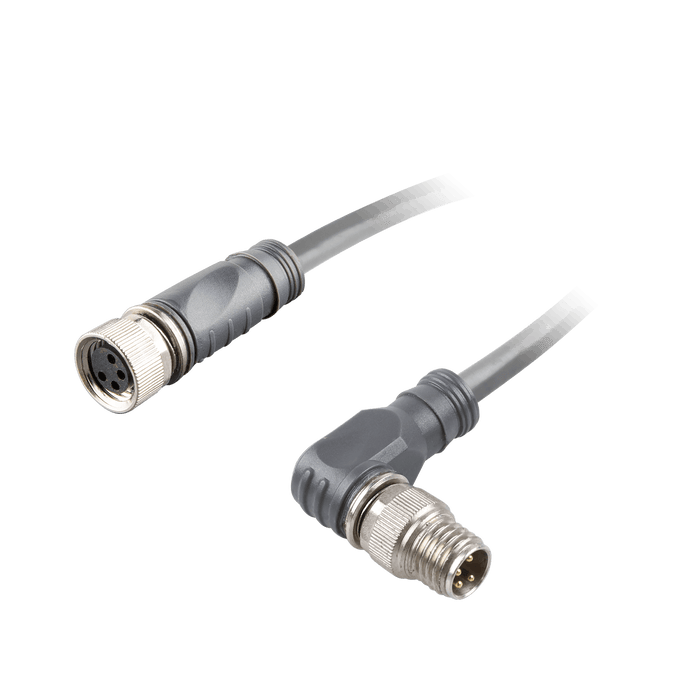

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M8 A-code 4-pin Angled Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 5 m

CO8.4-5-CB8.4

SKU CO8.4-5-CB8.4
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M8 A-code 4-pin Angled Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 5 m

$15.24 - $15.24
$15.24
$15.24 - $15.24
$15.24
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M8 A-code 4-pin Angled Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 5 m

Specifications

Wire cross-section 0.25 mm² (24 AWG)
Wire insulation color BN, WH, BU, BK
The head material TPU
Nut/bolt material Zinc die casting
Wire insulation material PVC
Shielded/Unshielded NO
Material contact TPU
Rated voltage 30 V AC/DC
LED indicator NO
Coating contact material Gold plated copper

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M8.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
