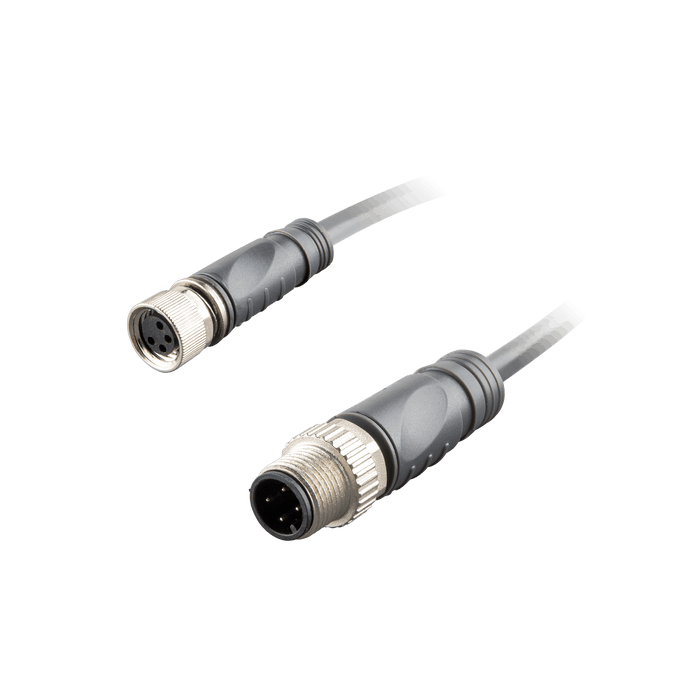

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M12 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 4 m

CO8.4-4-C12.4

SKU CO8.4-4-C12.4
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M12 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 4 m

$14.59 - $14.59
$14.59
$14.59 - $14.59
$14.59
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M12 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 4 m

Specifications

Coating contact material Gold plated copper
IP rating IP67
Drag chain Fixed installation
Cable jacket color grey
Wire insulation material PVC
Material contact TPU
Wire insulation color BN, WH, BU, BK
Cable jacket material PVC
Cable length 4 m
Shielded/Unshielded NO
Flex & Torsion NO

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M8.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CO8.4-X-C12.4.stp
