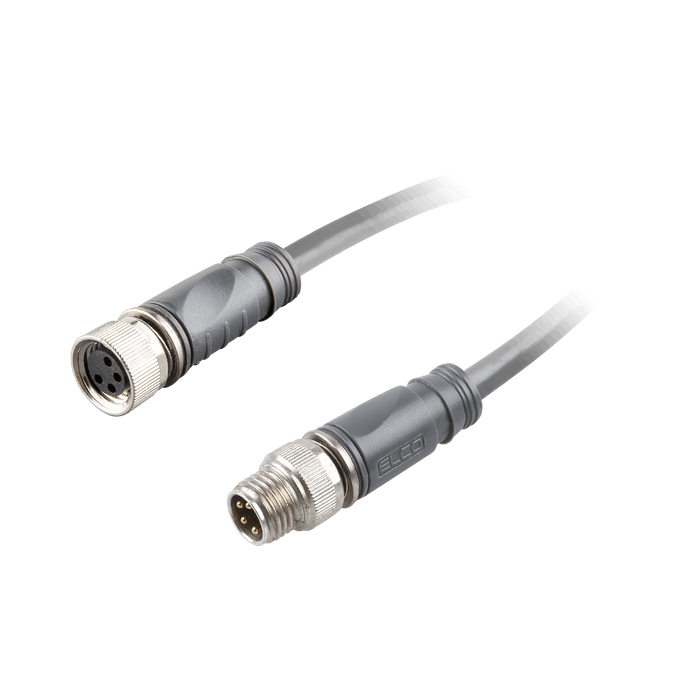

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M8 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

CO8.4-1-C8.4

SKU CO8.4-1-C8.4
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M8 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

$12.00 - $12.00
$12.00
$12.00 - $12.00
$12.00
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M8 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

Specifications

IP rating IP67
Wire insulation material PVC
Wire cross-section 0.25 mm² (24 AWG)
Drag chain Fixed installation
Wire insulation color BN, WH, BU, BK
Nut/bolt material Zinc die casting
Resistant to welding sparks NO
Material contact TPU
Coating contact material Gold plated copper

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M8.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CO8.4-x-C8.4.stp
