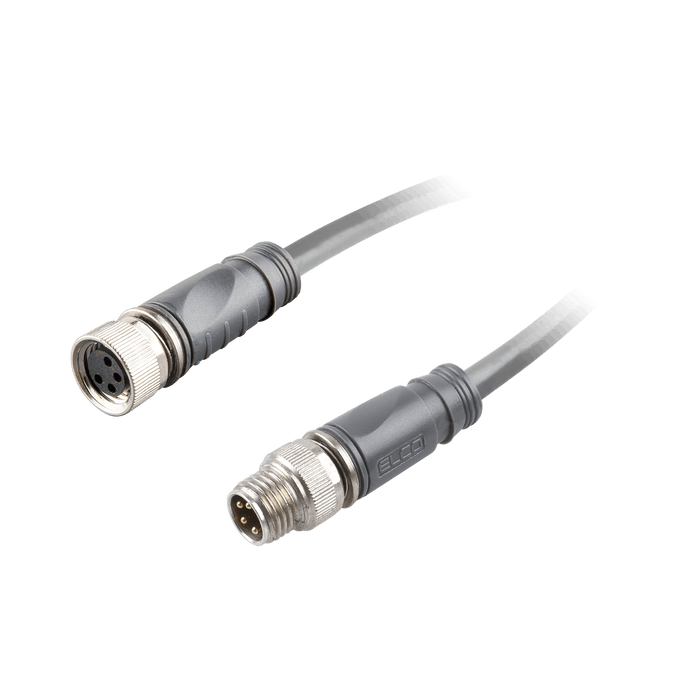

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M8 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 0.3 m

CO8.4-0.3-C8.4

SKU CO8.4-0.3-C8.4
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M8 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 0.3 m

$14.78 - $14.78
$14.78
$14.78 - $14.78
$14.78
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Straight Female, to M8 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 0.3 m

Specifications

Wire cross-section 0.25 mm² (24 AWG)
LED indicator NO
Rated voltage 30 V AC/DC
Rated current 4 A
The head material TPU
IP rating IP67
Drag chain Fixed installation
Nut/bolt material Zinc die casting
Resistant to welding sparks NO
Cable jacket color grey
Wire insulation color BN, WH, BU, BK

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M8.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CO8.4-x-C8.4.stp
