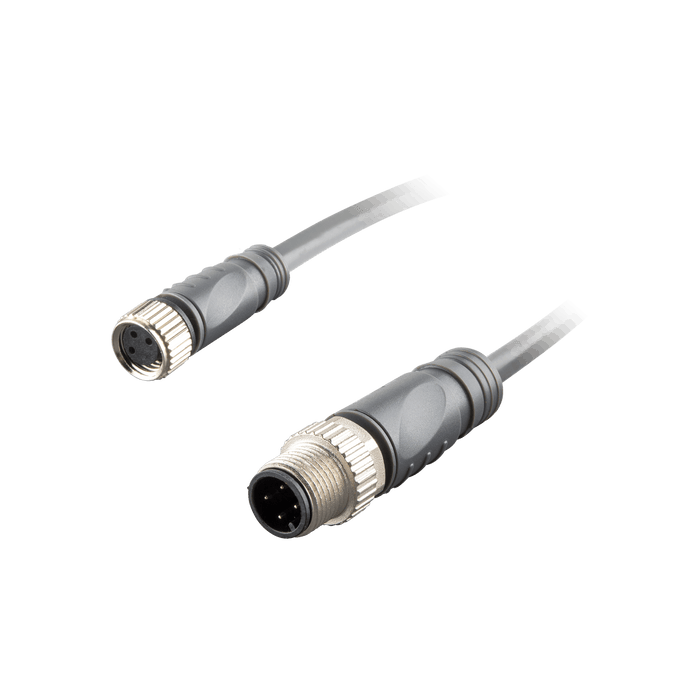

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 5 m

CO8.3-5-C12.3

SKU CO8.3-5-C12.3
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 5 m

$15.42 - $15.42
$15.42
$15.42 - $15.42
$15.42
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 5 m

Specifications

IP rating IP67
Wire insulation material PVC
Drag chain Fixed installation
Wire cross-section 0.25 mm² (24 AWG)
Wire insulation color BN, BU, BK
Nut/bolt material Zinc die casting
Shielded/Unshielded NO
Material contact TPU
Rated voltage 60 V AC/DC
LED indicator NO
Cable jacket material PVC

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CO8.3-X-C12.3.stp
