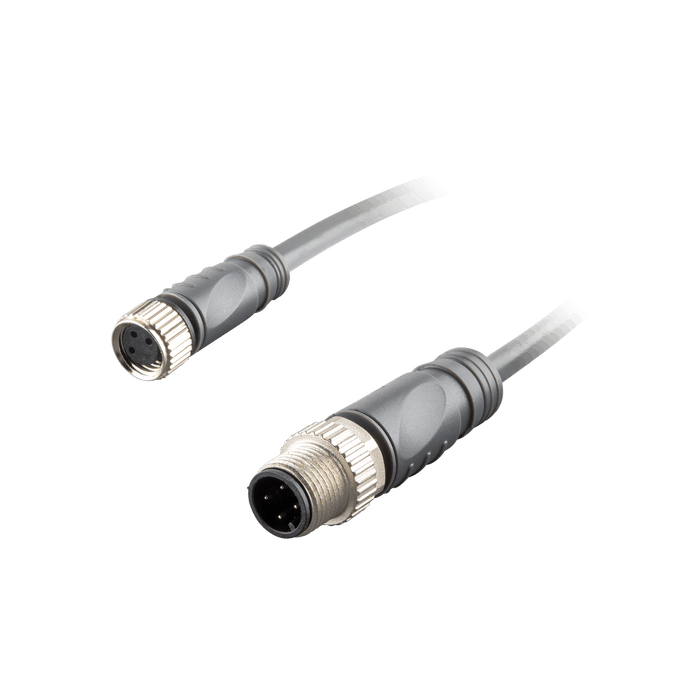

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 2 m

CO8.3-2-C12.3

SKU CO8.3-2-C12.3
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 2 m

$13.02 - $13.02
$13.02
$13.02 - $13.02
$13.02
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 2 m

Specifications

IP rating IP67
Wire insulation material PVC
Wire cross-section 0.25 mm² (24 AWG)
Drag chain Fixed installation
Nut/bolt material Zinc die casting
Resistant to welding sparks NO
Material contact TPU
Cable jacket color grey
Coating contact material Gold plated copper
The head material TPU

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CO8.3-X-C12.3.stp
