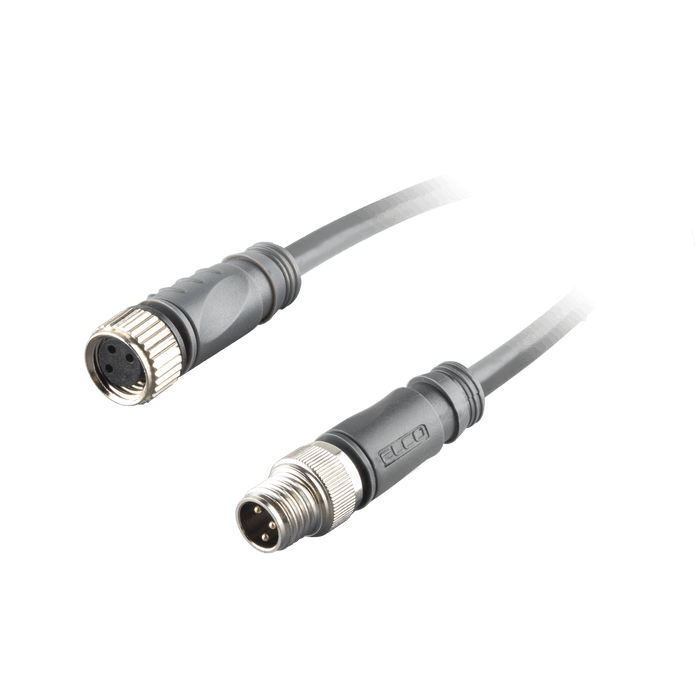

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 15 m

CO8.3-15-C8.3

SKU CO8.3-15-C8.3
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 15 m

$22.93 - $22.93
$22.93
$22.93 - $22.93
$22.93
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 15 m

Specifications

IP rating IP67
Wire insulation material PVC
The head material TPU
Wire cross-section 0.25 mm² (24 AWG)
Wire insulation color BN, BU, BK
Drag chain Fixed installation
Nut/bolt material Zinc die casting
Material contact TPU
Coating contact material Gold plated copper
LED indicator NO

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M8.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CO8.3-X-C8.3.stp
