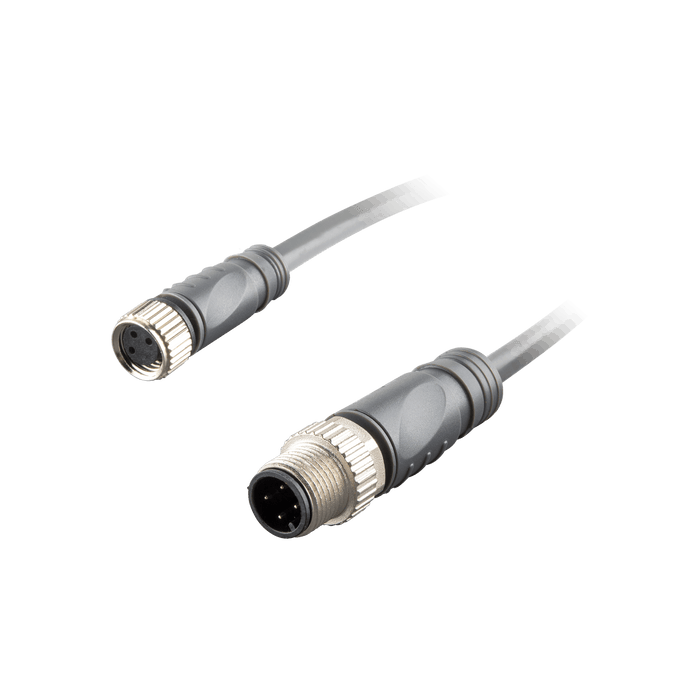

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1.5 m

CO8.3-1.5-C12.3

SKU CO8.3-1.5-C12.3
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1.5 m

$12.55 - $12.55
$12.55
$12.55 - $12.55
$12.55
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1.5 m

Specifications

Wire cross-section 0.25 mm² (24 AWG)
Shielded/Unshielded NO
Coating contact material Gold plated copper
Material contact TPU
Nut/bolt material Zinc die casting
Rated voltage 60 V AC/DC
Drag chain Fixed installation
Wire insulation material PVC
Wire insulation color BN, BU, BK

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CO8.3-X-C12.3.stp
