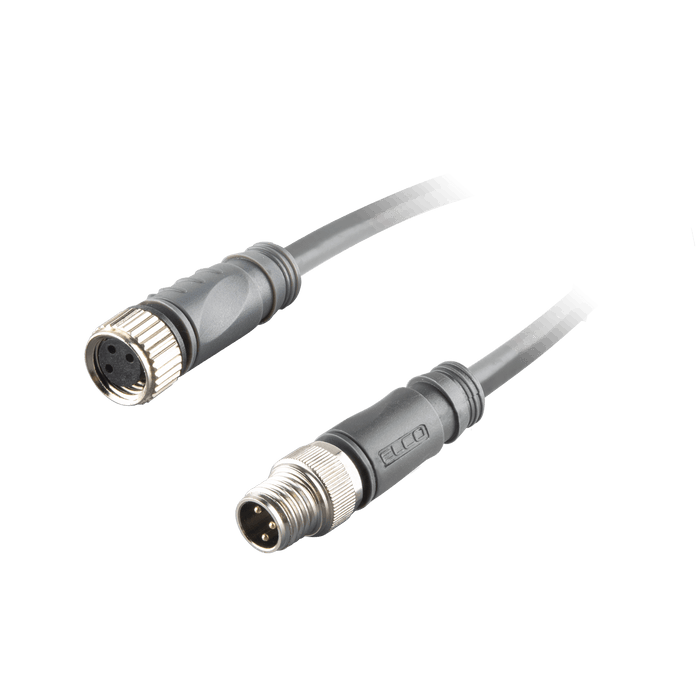

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

CO8.3-1-C8.3

SKU CO8.3-1-C8.3
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

$11.16 - $11.16
$11.16
$11.16 - $11.16
$11.16
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

Specifications

Wire insulation material PVC
IP rating IP67
Wire cross-section 0.25 mm² (24 AWG)
Coating contact material Gold plated copper
Material contact TPU
Nut/bolt material Zinc die casting
Rated voltage 60 V AC/DC
Cable jacket color grey
Cable jacket material PVC
Shielded/Unshielded NO
Cable length 1 m;

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M8.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CO8.3-X-C8.3.stp
