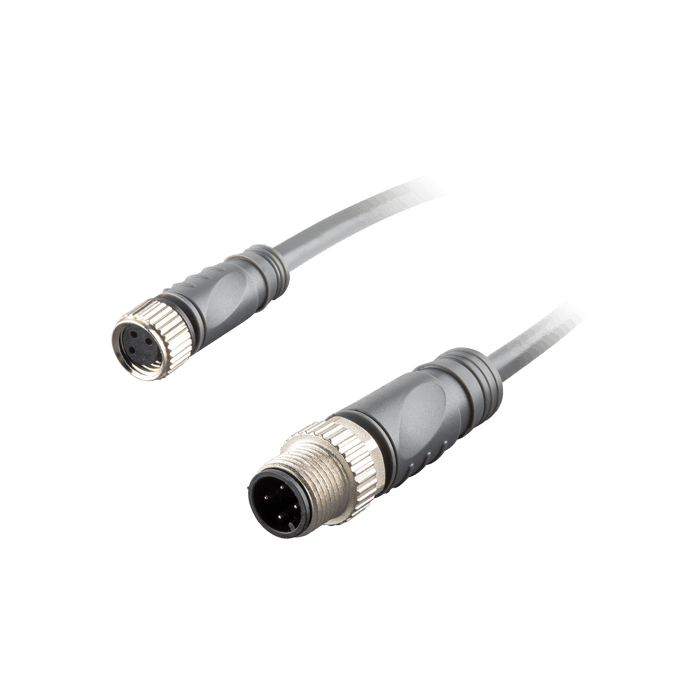

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, with PNP LED, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

CO8.3-1-C12.3/L

SKU CO8.3-1-C12.3/L
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, with PNP LED, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

$10.00 - $10.00
$10.00
$10.00 - $10.00
$10.00
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, with PNP LED, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

Specifications

Wire insulation material PVC
The head material TPU
Wire cross-section 0.25 mm² (24 AWG)
Drag chain Fixed installation
Wire insulation color BN, BU, BK
Nut/bolt material Zinc die casting
Material contact TPU
Coating contact material Gold plated copper
LED indicator PNP
Cable jacket material PVC

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M8.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
