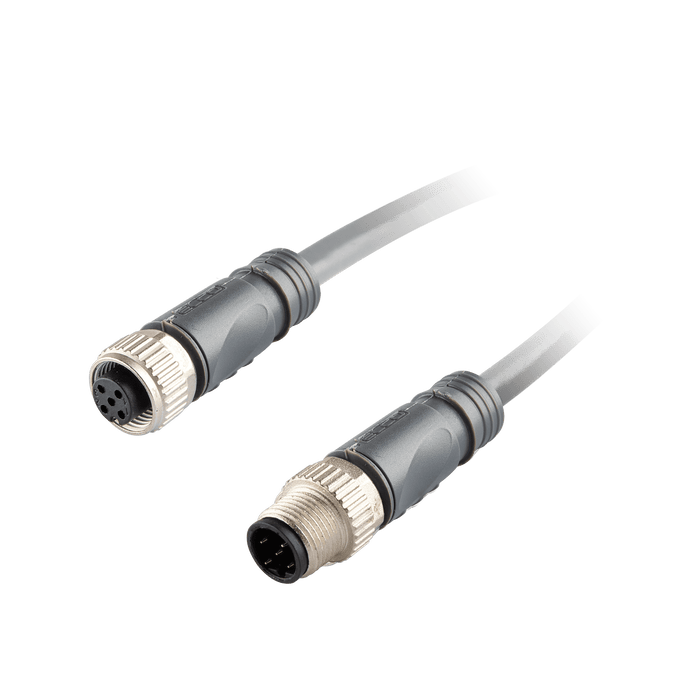

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Straight Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) Shielded cable, 10 m

CO12.5-10-C12.5/WS

SKU CO12.5-10-C12.5/WS
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Straight Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) Shielded cable, 10 m

$45.72 - $45.72
$45.72
$45.72 - $45.72
$45.72
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Straight Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) Shielded cable, 10 m

Specifications

IP rating IP67
Wire insulation material PVC
Wire cross-section 0.34 mm² (22 AWG)
Drag chain Fixed installation
Nut/bolt material Zinc die casting
Coating contact material Gold plated copper
The head material TPU
Wire insulation color BN, WH, BU, BK, GY
Cable jacket material PVC
LED indicator NO

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CO12.5-X-C12.5.stp
