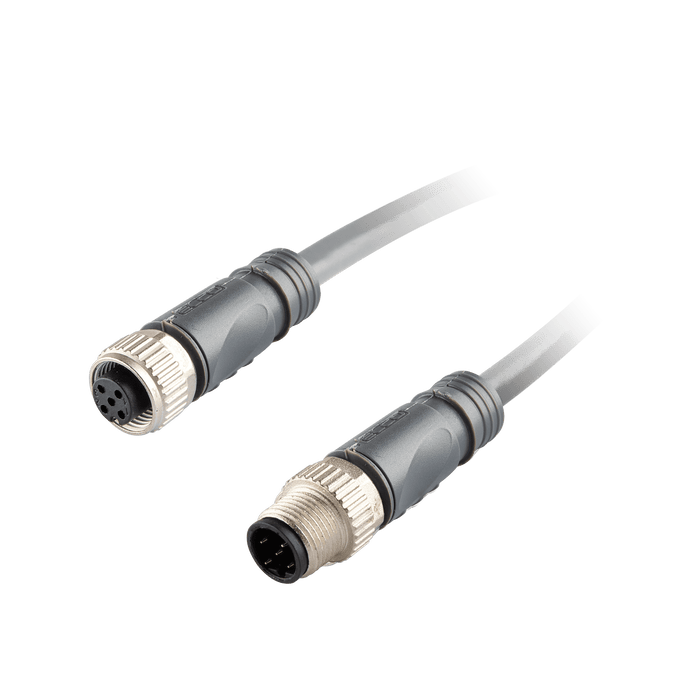

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Straight Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 0.6 m

CO12.5-0.6-C12.5

SKU CO12.5-0.6-C12.5
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Straight Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 0.6 m

$12.97 - $12.97
$12.97
$12.97 - $12.97
$12.97
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Straight Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 0.6 m

Specifications

Wire cross-section 0.34 mm² (22 AWG)
Wire insulation color BN, WH, BU, BK, GY
Nut/bolt material Zinc die casting
Wire insulation material PVC
The head material TPU
Cable length 0.6 m
Cable jacket material PVC
Coating contact material Gold plated copper
Drag chain Fixed installation
LED indicator N

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CO12.5-X-C12.5.stp
