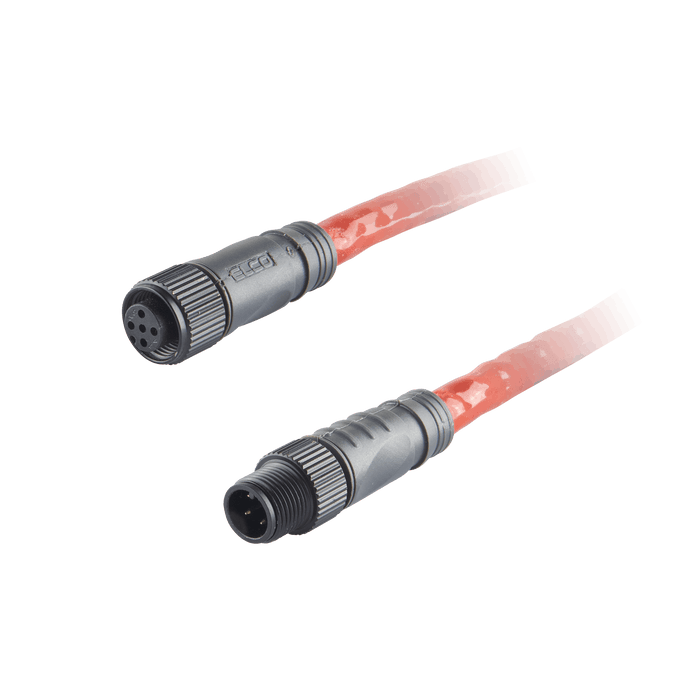

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Straight Female, to M12 A-code 4-pin Straight male, with PTFE Coating, with PVC grey jacket 0.34mm² (22 AWG) cable and red Silicon Glass Fiber Sheath, 6 m

CO12.4-6-C12.4/PF/SIC

SKU CO12.4-6-C12.4/PF/SIC
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Straight Female, to M12 A-code 4-pin Straight male, with PTFE Coating, with PVC grey jacket 0.34mm² (22 AWG) cable and red Silicon Glass Fiber Sheath, 6 m

$57.30 - $57.30
$57.30
$57.30 - $57.30
$57.30
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Straight Female, to M12 A-code 4-pin Straight male, with PTFE Coating, with PVC grey jacket 0.34mm² (22 AWG) cable and red Silicon Glass Fiber Sheath, 6 m

Specifications

Cable jacket material Silicon+PVC
Cable length 6 m
Wire insulation material PVC
Resistant to welding sparks YES
Wire insulation color BN, WH, BU, BK
Drag chain Fixed installation
IP rating IP67
Shielded/Unshielded NO
Cable jacket color red
Flex & Torsion NO
Product type Sensor-Actuator Cordset

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
Datasheet DS_C_CO12.4_C12.4_PF_SIC_V1.1_EN.pdf
