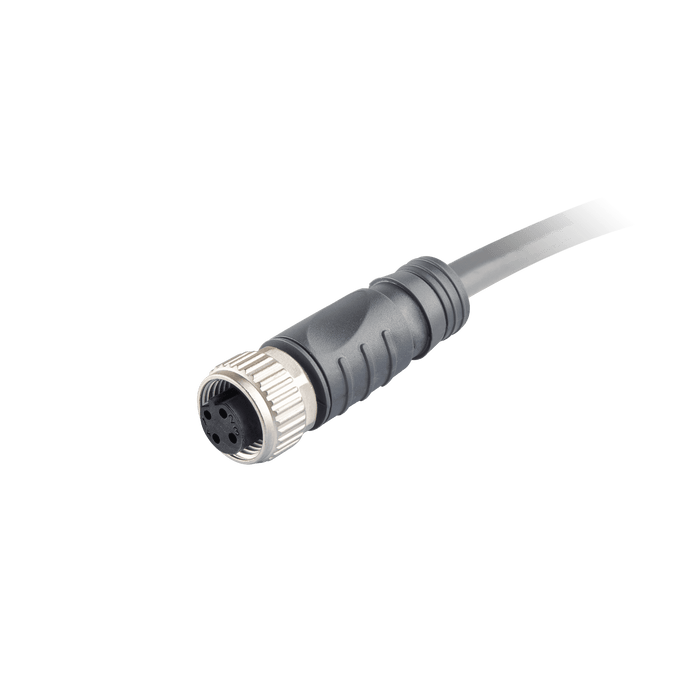

Sensor-Actuator Cordset, Single-ended, M12 A-code 4-pin Straight Female, with PVC grey jacket 0.34mm² (22 AWG) Shielded cable, 30 m

Specifications

Wire insulation material PVC
Wire insulation color BN, WH, BU, BK
IP rating IP67
Cable jacket material PVC
LED indicator NO
Cable length 30 m
Wire cross-section 0.34 mm² (22 AWG)
The head material TPU
Material contact TPU
Shielded/Unshielded YES
Coating contact material Gold plated copper

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 单端预注IO连接器技术资料_CN.pdf
Datasheet ELCO_M12 Single-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CO12.4-X.stp
