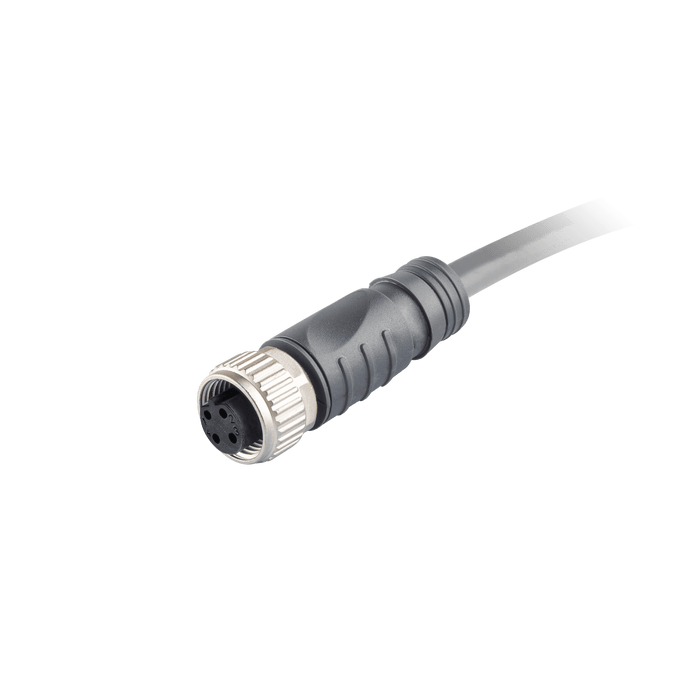

Sensor-Actuator Cordset, Single-ended, M12 A-code 4-pin Straight Female, with PNP LED, with PUR grey jacket 0.34mm² (22 AWG) 5 million bending cycles cable, 30 m

CO12.4-30/L/P

SKU CO12.4-30/L/P
by ELCO Industrial Automation

Sensor-Actuator Cordset, Single-ended, M12 A-code 4-pin Straight Female, with PNP LED, with PUR grey jacket 0.34mm² (22 AWG) 5 million bending cycles cable, 30 m

$74.67 - $74.67
$74.67
$74.67 - $74.67
$74.67
Availability:
In stock

Sensor-Actuator Cordset, Single-ended, M12 A-code 4-pin Straight Female, with PNP LED, with PUR grey jacket 0.34mm² (22 AWG) 5 million bending cycles cable, 30 m

Specifications

Product type Sensor-Actuator Cordset
Termination type Single-end
Head 1 Type M12
Head 1 Coding A-code
Head 1 Number of contacts 4
Head 1 Shape Straight
Head 1 Gender Female
The head material TPU
Nut/bolt material Zinc die casting
Coating contact material Gold plated copper
Material contact TPU

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 单端预注IO连接器技术资料_CN.pdf
Datasheet ELCO_M12 Single-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CO12.4-X.stp
