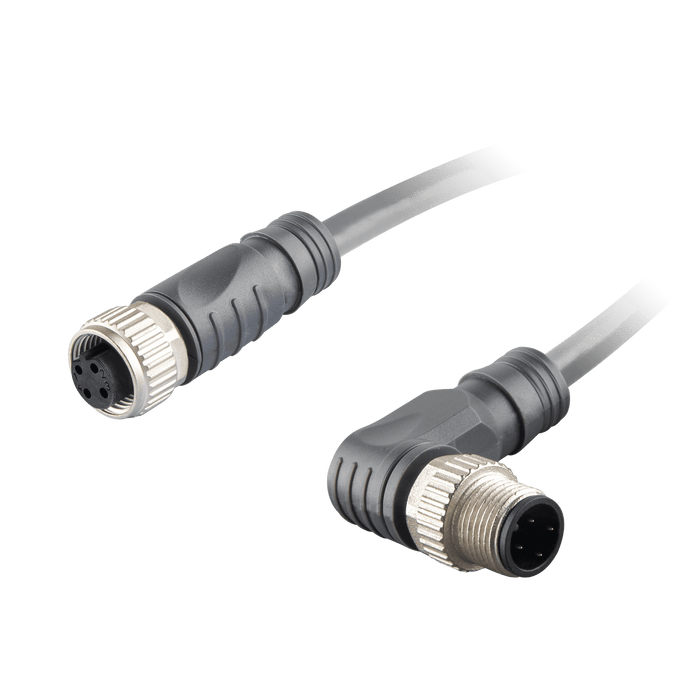

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Straight Female, to M12 A-code 4-pin Angled Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 10 m

CO12.4-10-CB12.4

SKU CO12.4-10-CB12.4
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Straight Female, to M12 A-code 4-pin Angled Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 10 m

$22.19 - $22.19
$22.19
$22.19 - $22.19
$22.19
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Straight Female, to M12 A-code 4-pin Angled Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 10 m

Specifications

Wire cross-section 0.34 mm² (22 AWG)
Nut/bolt material Zinc die casting
Cable jacket material PVC
The head material TPU
Coating contact material Gold plated copper
LED indicator NO
Material contact TPU
Rated voltage 250 V AC/DC
Cable jacket color grey
Rated current 4 A
Wire insulation material P

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CO12.4-X-CB12.4.stp
