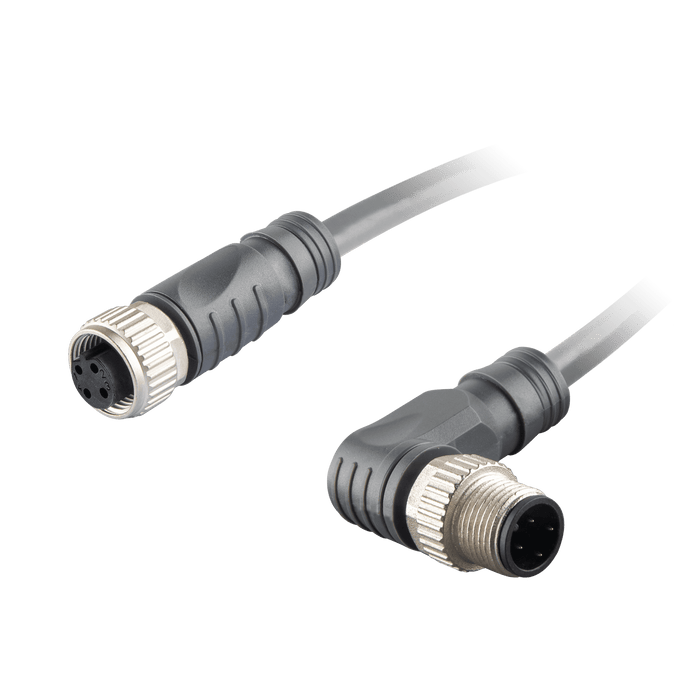

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Straight Female, to M12 A-code 3-pin Angled Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 3 m

CO12.3-3-CB12.3

SKU CO12.3-3-CB12.3
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Straight Female, to M12 A-code 3-pin Angled Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 3 m

$14.31 - $14.31
$14.31
$14.31 - $14.31
$14.31
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Straight Female, to M12 A-code 3-pin Angled Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 3 m

Specifications

LED indicator NO
Rated current 4 A
Wire cross-section 0.34 mm² (22 AWG)
Rated voltage 250 V AC/DC
The head material TPU
IP rating IP67
Wire insulation material PVC
Cable length 3 m
Drag chain Fixed installation
Cable jacket material PVC
Wire insulation color BN, BU, BK
Nut/bolt material Zinc d

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CO12.3-X-CB12.3.stp
