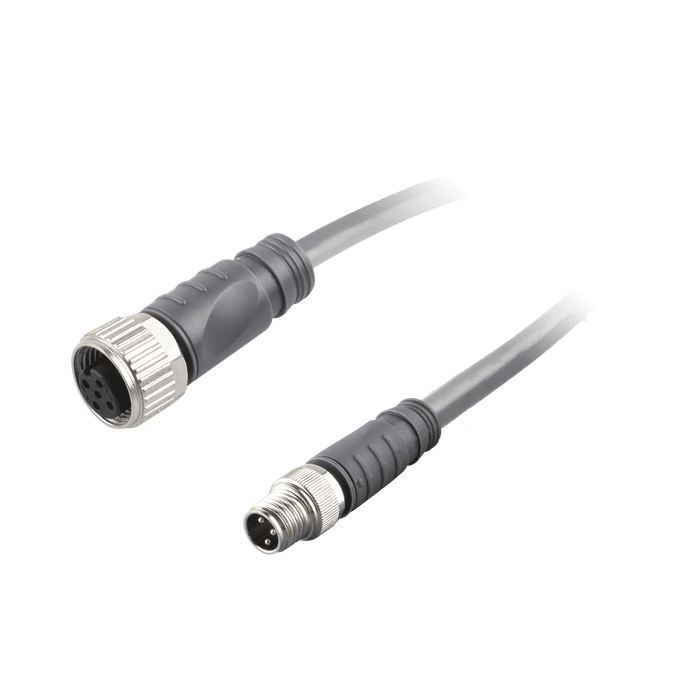

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Straight Female, with PNP LED, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

CO12.3-1-C8.3/L

SKU CO12.3-1-C8.3/L
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Straight Female, with PNP LED, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

$10.00 - $10.00
$10.00
$10.00 - $10.00
$10.00
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Straight Female, with PNP LED, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 1 m

Specifications

Wire cross-section 0.34 mm² (22 AWG)
Rated voltage 30 V DC
Rated current 4 A
IP rating IP67
Drag chain Fixed installation
Wire insulation color BN, BU, BK
Nut/bolt material Zinc die casting
Coating contact material Gold plated copper
The head material TPU
LED indicator PNP
Cable length 1 m

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CO12.3-X-C8.3.stp
