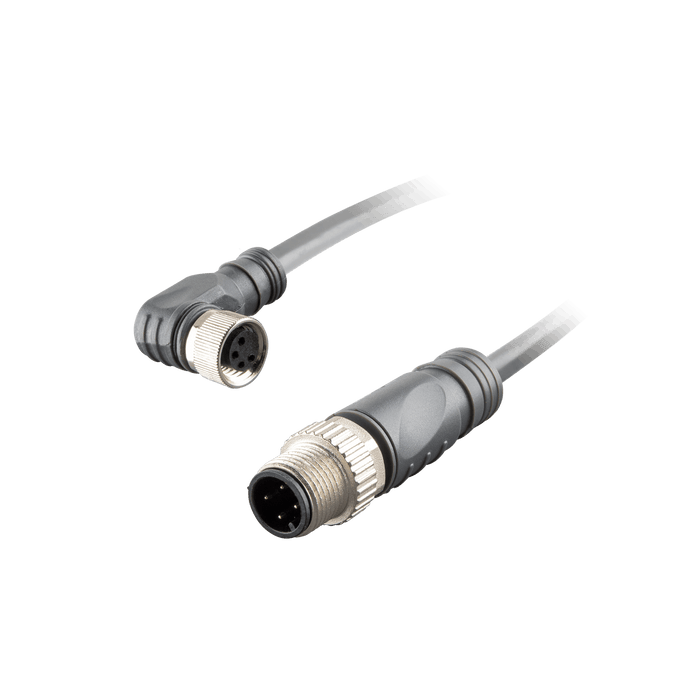

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Angled Female, with PNP LED, to M12 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 2 m

CBO8.4-2-C12.4/L

SKU CBO8.4-2-C12.4/L
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Angled Female, with PNP LED, to M12 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 2 m

$11.90 - $11.90
$11.90
$11.90 - $11.90
$11.90
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Angled Female, with PNP LED, to M12 A-code 4-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 2 m

Specifications

IP rating IP67
Wire insulation material PVC
Drag chain Fixed installation
Wire cross-section 0.25 mm² (24 AWG)
Nut/bolt material Zinc die casting
Rated current 4 A
Shielded/Unshielded NO
Material contact TPU
Rated voltage 30 V DC
LED indicator PNP
Wire insulation color BN, WH, BU, BK

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M8.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CBO8.4-X-C12.4.stp
