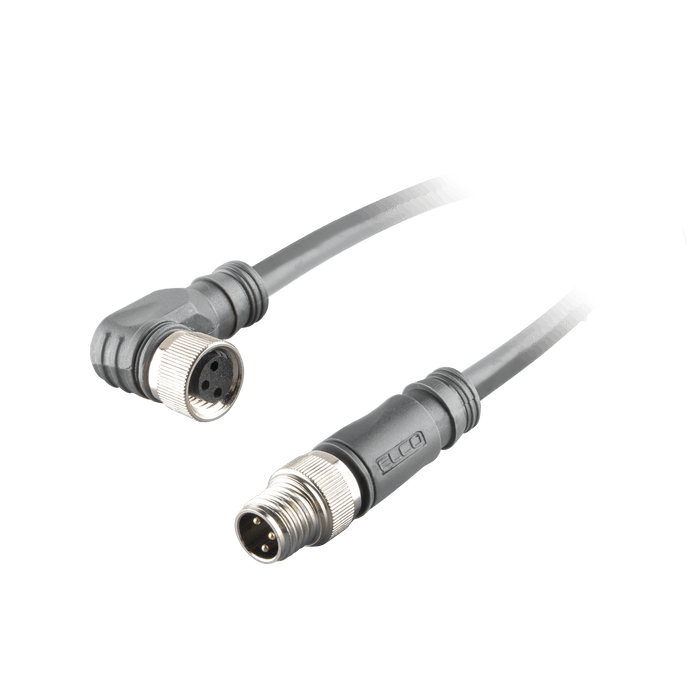

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Angled Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 3 m

CBO8.3-3-C8.3

SKU CBO8.3-3-C8.3
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Angled Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 3 m

$12.69 - $12.69
$12.69
$12.69 - $12.69
$12.69
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Angled Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 3 m

Specifications

Wire cross-section 0.25 mm² (24 AWG)
Wire insulation color BN, BU, BK
Shielded/Unshielded NO
Material contact TPU
Nut/bolt material Zinc die casting
Rated voltage 60 V AC/DC
Drag chain Fixed installation
Cable jacket material PVC
The head material TPU
Coating contact material Gold plated copper

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M8.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
