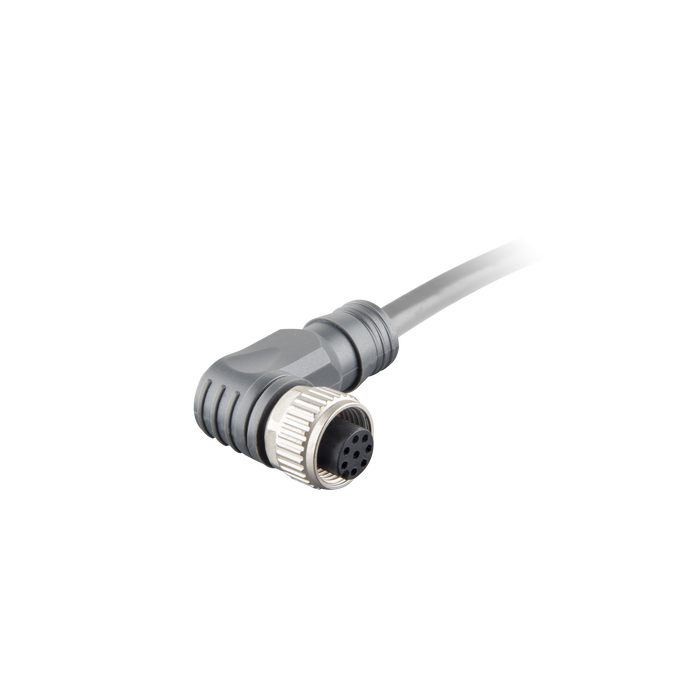

Sensor-Actuator Cordset, Single-ended, M12 A-code 8-pin Angled Female, with PVC grey jacket 0.25mm² (24 AWG) Shielded cable, 2 m

Specifications

Wire cross-section 0.25 mm² (24 AWG)
Rated voltage 30 V AC/DC
Rated current 2 A
IP rating IP67
Cable length 2 m
Wire insulation color WH, BN, GN, YE, GY, PK, BU, RD
Nut/bolt material Zinc die casting
Resistant to welding sparks NO
Drag chain Fixed installation
The head material TPU

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 单端预注IO连接器技术资料_CN.pdf
Datasheet ELCO_M12 Single-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CBO12.8-X.stp
