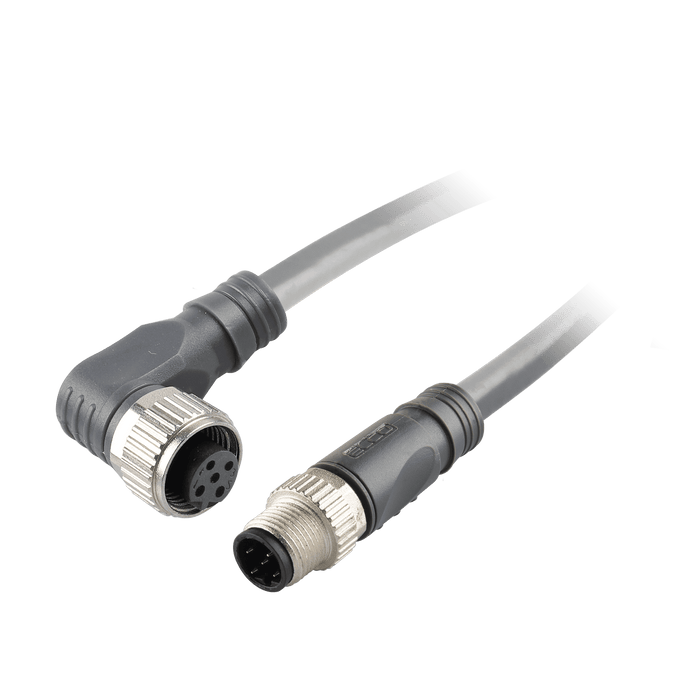

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Angled Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 4 m

CBO12.5-4-C12.5

SKU CBO12.5-4-C12.5
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Angled Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 4 m

$17.51 - $17.51
$17.51
$17.51 - $17.51
$17.51
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Angled Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 4 m

Specifications

Wire cross-section 0.34 mm² (22 AWG)
Nut/bolt material Zinc die casting
The head material TPU
Wire insulation color BN, WH, BU, BK, GY
Drag chain Fixed installation
Cable jacket material PVC
Wire insulation material PVC
LED indicator NO
Cable length 4 m
Coating contact material Gold plated copper;

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CBO12.5-X-C12.5.stp
