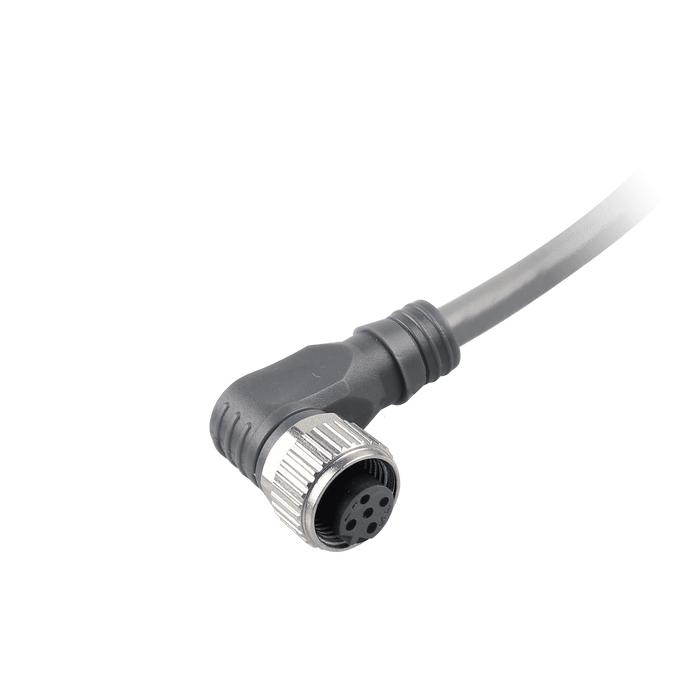

Sensor-Actuator Cordset, Single-ended, M12 A-code 5-pin Angled Female, with PVC grey jacket 0.34mm² (22 AWG) Shielded cable, 3.5 m

Specifications

Wire insulation material PVC
IP rating IP67
Nut/bolt material Zinc die casting
Wire insulation color BN, WH, BU, BK,GY
Cable jacket material PVC
Shielded/Unshielded YES
The head material TPU
Coating contact material Gold plated copper
LED indicator NO
Cable length 3.5 m
Material contact TPU

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 单端预注IO连接器技术资料_CN.pdf
Datasheet ELCO_M12 Single-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CBO12.5-X.stp
