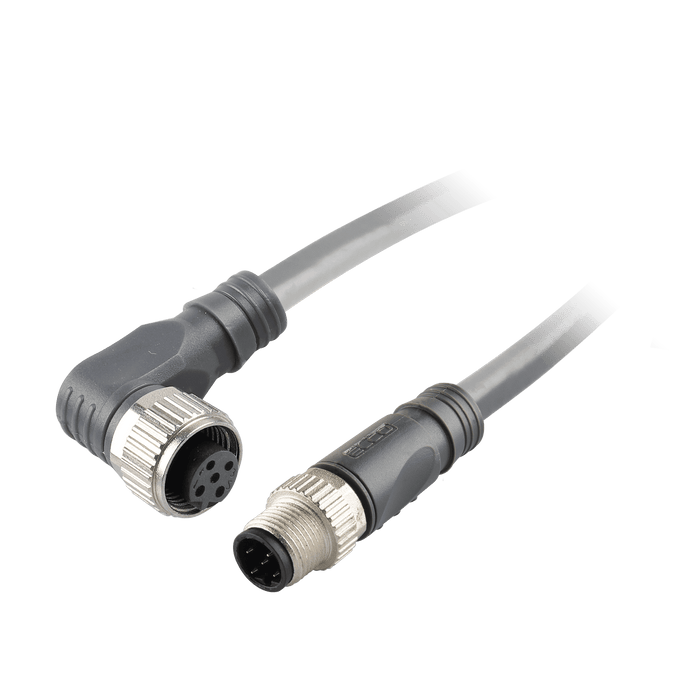

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Angled Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 3 m

CBO12.5-3-C12.5

SKU CBO12.5-3-C12.5
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Angled Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 3 m

$16.17 - $16.17
$16.17
$16.17 - $16.17
$16.17
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Angled Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 3 m

Specifications

Flex & Torsion NO
IP rating IP67
Wire insulation material PVC
Cable length 3 m
Wire cross-section 0.34 mm² (22 AWG)
Drag chain Fixed installation
Wire insulation color BN, WH, BU, BK, GY
Nut/bolt material Zinc die casting
Coating contact material Gold plated copper
The head material TPU

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CBO12.5-X-C12.5.stp
