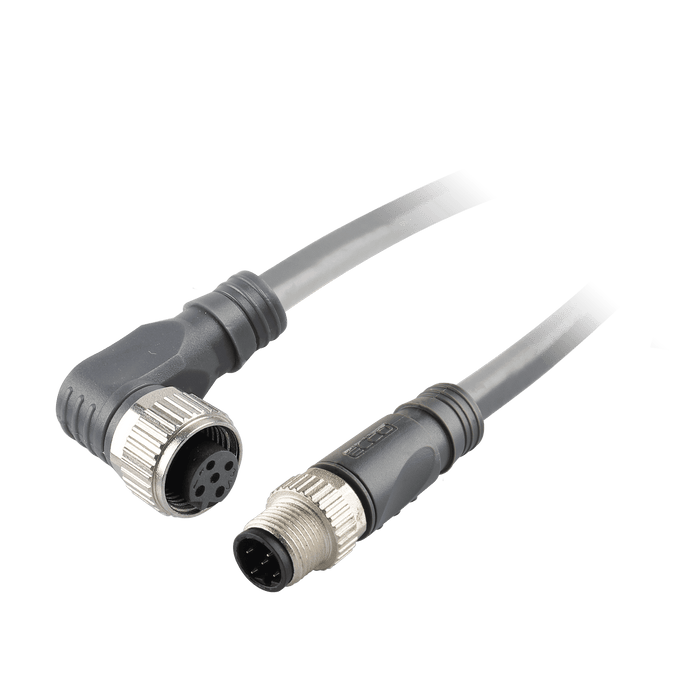

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Angled Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) Shielded cable, 2 m

CBO12.5-2-C12.5/WS

SKU CBO12.5-2-C12.5/WS
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Angled Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) Shielded cable, 2 m

$24.92 - $24.92
$24.92
$24.92 - $24.92
$24.92
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Angled Female, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) Shielded cable, 2 m

Specifications

IP rating IP67
Cable jacket material PVC
Wire insulation material PVC
LED indicator NO
Cable length 2 m
Wire cross-section 0.34 mm² (22 AWG)
The head material TPU
Nut/bolt material Zinc die casting
Drag chain Fixed installation
Wire insulation color BN, WH, BU, BK, GY
Coating contact material Go

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CBO12.5-X-C12.5.stp
