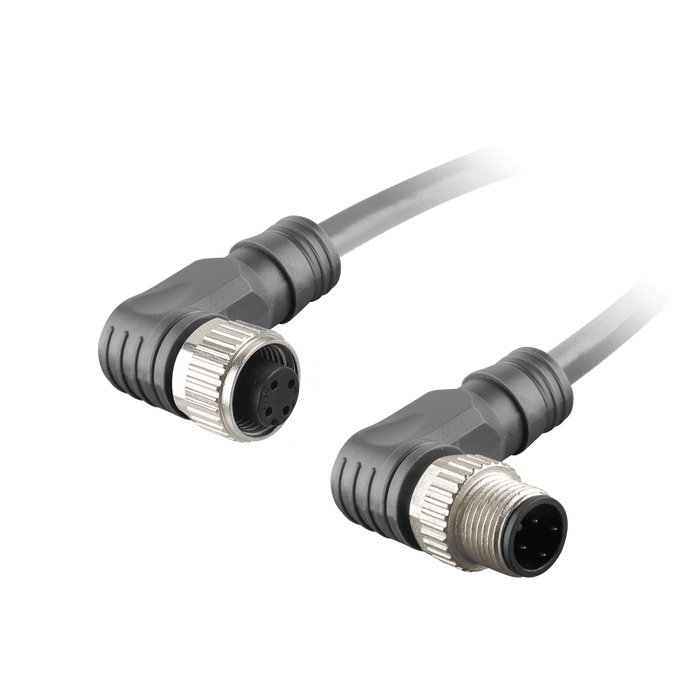

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Angled Female, to M12 A-code 4-pin Angled Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 5 m

CBO12.4-5-CB12.4

SKU CBO12.4-5-CB12.4
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Angled Female, to M12 A-code 4-pin Angled Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 5 m

$17.05 - $17.05
$17.05
$17.05 - $17.05
$17.05
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Angled Female, to M12 A-code 4-pin Angled Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 5 m

Specifications

Wire insulation material PVC
Cable length 5 m
Nut/bolt material Zinc die casting
Wire insulation color BN, WH, BU, BK
IP rating IP67
The head material TPU
LED indicator NO
Cable jacket material PVC
Wire cross-section 0.34 mm² (22 AWG)
Shielded/Unshielded NO
Coating contact material Gold plated c

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CBO12.4-X-CB12.4.stp
