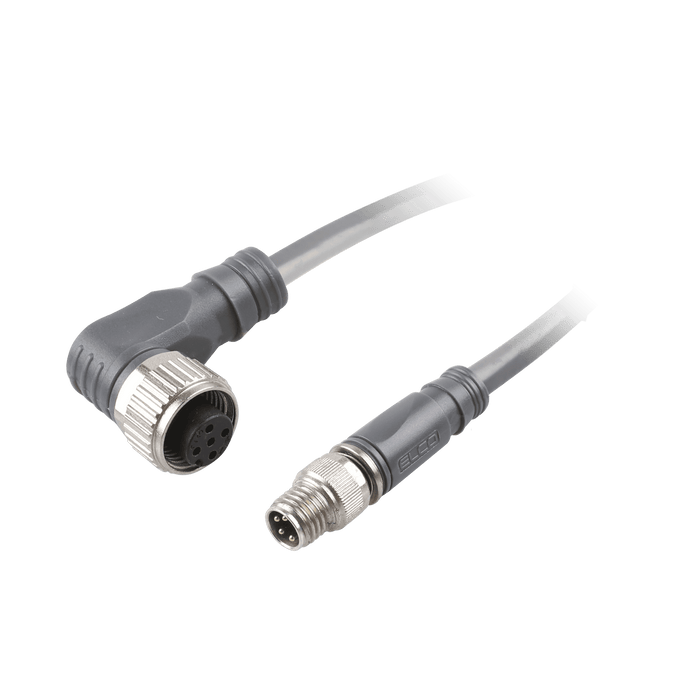

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Angled Female, to M8 A-code 4-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 10 m

CBO12.4-10-C8.4

SKU CBO12.4-10-C8.4
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Angled Female, to M8 A-code 4-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 10 m

$22.19 - $22.19
$22.19
$22.19 - $22.19
$22.19
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Angled Female, to M8 A-code 4-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 10 m

Specifications

Wire cross-section 0.34 mm² (22 AWG)
Cable length 10 m
Cable jacket material PVC
Wire insulation material PVC
The head material TPU
LED indicator NO
Drag chain Fixed installation
Wire insulation color BN, WH, BU, BK
Nut/bolt material Zinc die casting
Coating contact material Gold plated copper

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CBO12.4-X-C8.4.stp
