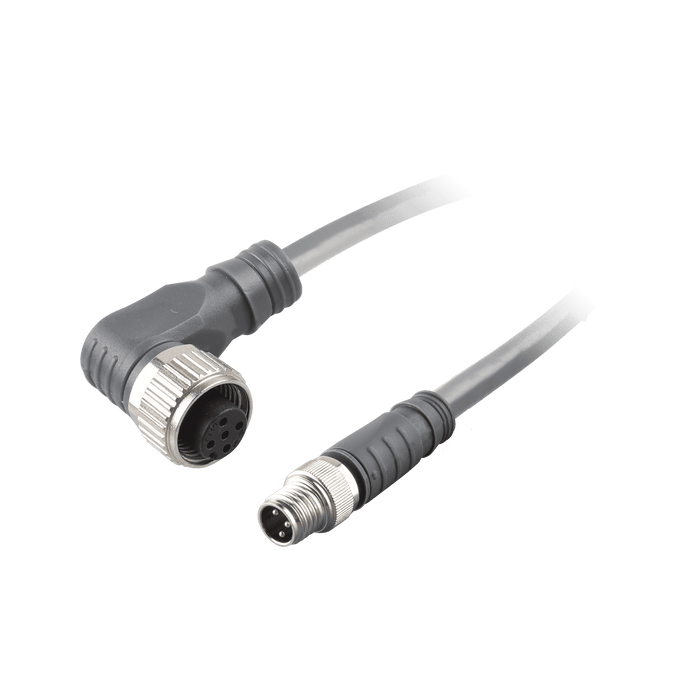

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Angled Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 5 m

CBO12.3-5-C8.3

SKU CBO12.3-5-C8.3
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Angled Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 5 m

$16.26 - $16.26
$16.26
$16.26 - $16.26
$16.26
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Angled Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 5 m

Specifications

IP rating IP67
Wire cross-section 0.34 mm² (22 AWG)
Drag chain Fixed installation
Nut/bolt material Zinc die casting
The head material TPU
LED indicator NO
Wire insulation color BN, BU, BK
Cable jacket material PVC
Wire insulation material PVC
Cable length 5 m
Coating contact material Gold plate

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CBO12.3-X-C8.3.stp
