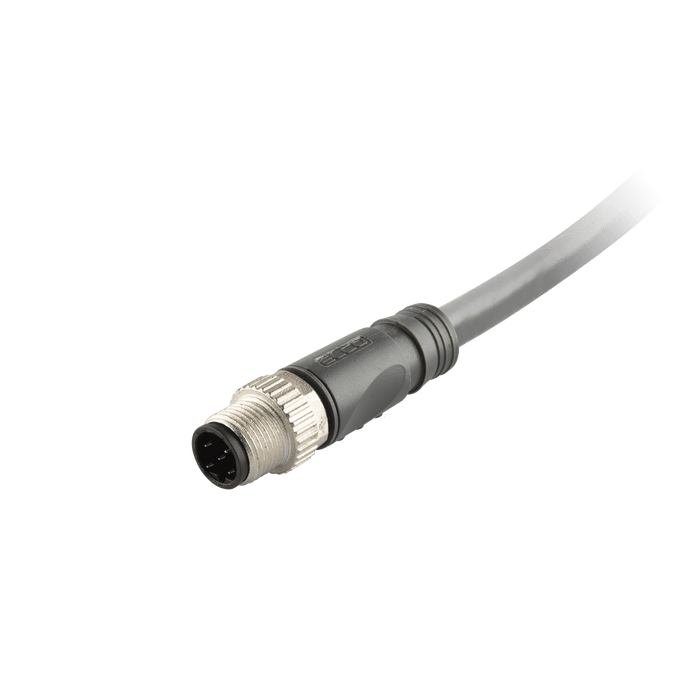

Sensor-Actuator Cordset, Single-ended, M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) Shielded cable, 25 m

Specifications

The head material TPU
Wire cross-section 0.34 mm² (22 AWG)
LED indicator NO
Nut/bolt material Zinc die casting
Coating contact material Gold plated copper
Material contact TPU
Rated voltage 60 V AC/DC
Rated current 4 A
Cable jacket color grey
Cable jacket material PVC
Wire insulation material PV

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 单端预注IO连接器技术资料_CN.pdf
Datasheet ELCO_M12 Single-ended connector DataSheet_EN.pdf
3D Drawing ELCO_C12.5-X.stp
