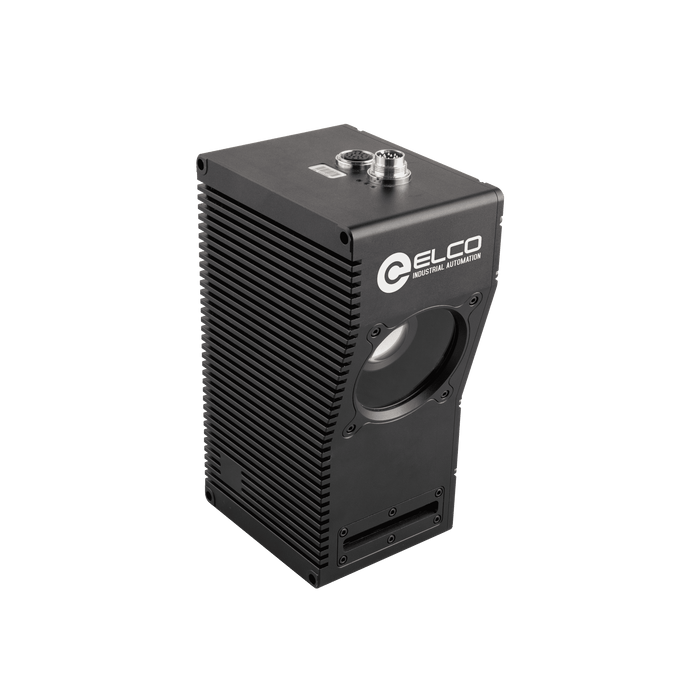

3D Laser profile sensor, LVM25 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 206.5 ... 663.6 mm, FOV 363.3 ... 975.4 mm,Data points 4096, Scan rate 1800 ... 37900 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Field of view 363.3 ... 975.4 mm
Measurement range 457.1 mm
Clearance distance 206.5 mm
Data points 4096
Laser wavelength 405 nm
Communication protocol ModbusTCP, PROFINET, ASCII, EtherNet/IP
Ambient temperature 0 ... +50 ℃
Storage temperature -30 ... +70 ℃
IP rating IP67
Inputs Time trigger, Diff

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet ELCO_LVM2570_DataSheet_EN.pdf
Datasheet ELCO_LVM2570_DataSheet_CN.pdf
3D Drawing ELCO_LVM2570.step
Manual ELCO_3D sensor_Manual_EN.pdf
Manual ELCO_3D sensor_Manual_CN.pdf
Configuration application LVM-V2.5.0.14-Setup.zip
