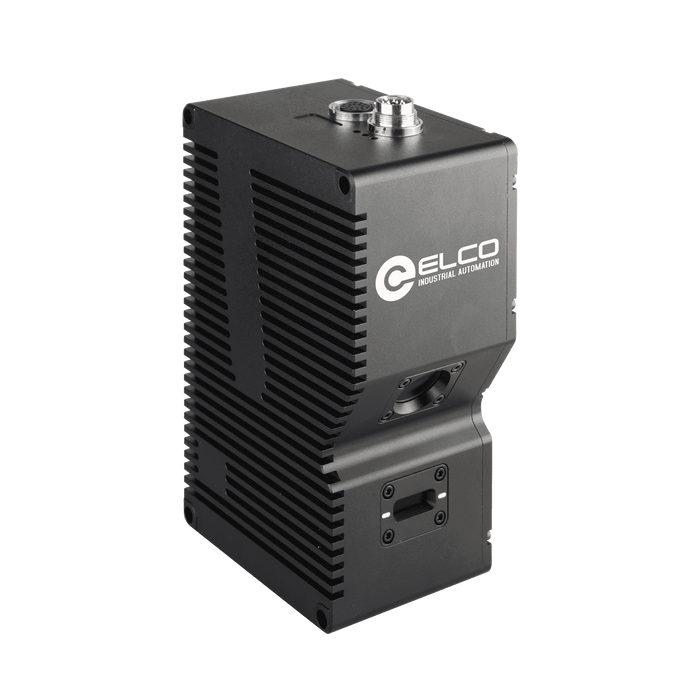

3D Laser profile sensor, LVM25 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 55.2 ... 70.8 mm, FOV 46.4 ... 55 mm,Data points 4096, Scan rate 1800 ... 37900 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

LVM2540

SKU LVM2540
by ELCO Industrial Automation

3D Laser profile sensor, LVM25 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 55.2 ... 70.8 mm, FOV 46.4 ... 55 mm,Data points 4096, Scan rate 1800 ... 37900 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

$18,087.36 - $18,087.36
$18,087.36
$18,087.36 - $18,087.36
$18,087.36
Availability:
In stock

3D Laser profile sensor, LVM25 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 55.2 ... 70.8 mm, FOV 46.4 ... 55 mm,Data points 4096, Scan rate 1800 ... 37900 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Communication protocol ModbusTCP, PROFINET, ASCII, EtherNet/IP
Ambient temperature 0 ... +50 ℃
Clearance distance 55.2 mm
Temperature characteristic ±0.01% of MR
Housing material Aluminium alloy
Storage temperature -30 ... +70 ℃
IP rating IP67
Inputs Time trigger, Differential encoder
Weight 1.82 kg

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet ELCO_LVM2540_DataSheet_EN.pdf
Datasheet ELCO_LVM2540_DataSheet_CN.pdf
3D Drawing ELCO_LVM2540.step
Manual ELCO_3D sensor_Manual_EN.pdf
Manual ELCO_3D sensor_Manual_CN.pdf
Configuration application LVM-V2.5.0.14-Setup.zip
