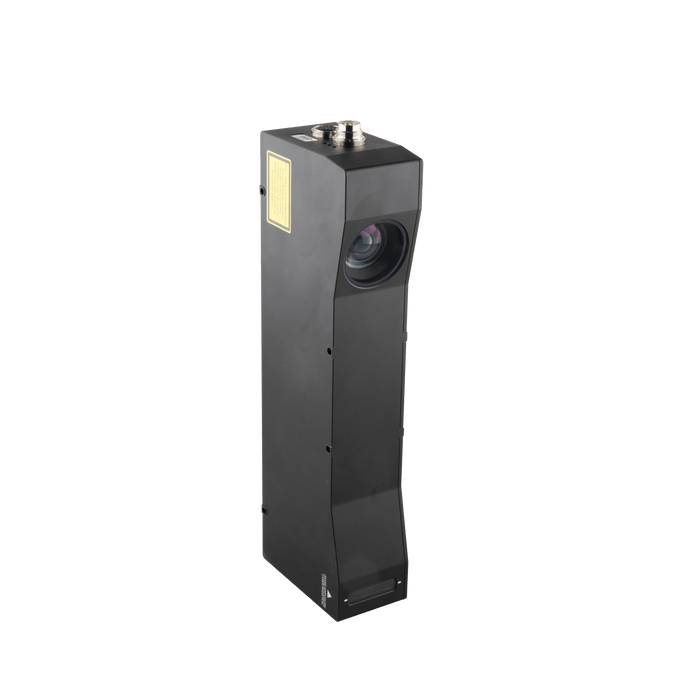

3D Laser profile sensor, LVM24 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 617 ... 2129.1 mm, FOV 746.8 ... 2301.4 mm,Data points 3200, Scan rate 1500 ... 20000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Temperature characteristic ±0.01% of MR
Data points 3200
Clearance distance 617.0 mm
Measurement range 1512.1 mm
Field of view 746.8 ... 2301.4 mm
Laser wavelength 450 nm
Scan rate 1500 ... 20000 Hz
Resolution(x axis) 233.4 ... 719.2 μm
Repeatability(z axis) 100.0 μm
Linearity(z axis) ±0.02% of MR

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet DS_CS_LVM24A0_V1.1_EN.pdf
3D Drawing CAD_CS_LVM24A0_3D_V1.0.stp
Manual UM_CS_LVM24_V1.0_EN.pdf
Configuration application Software_CS_LVM2 Series_V2.6.0.1_ML.zip
