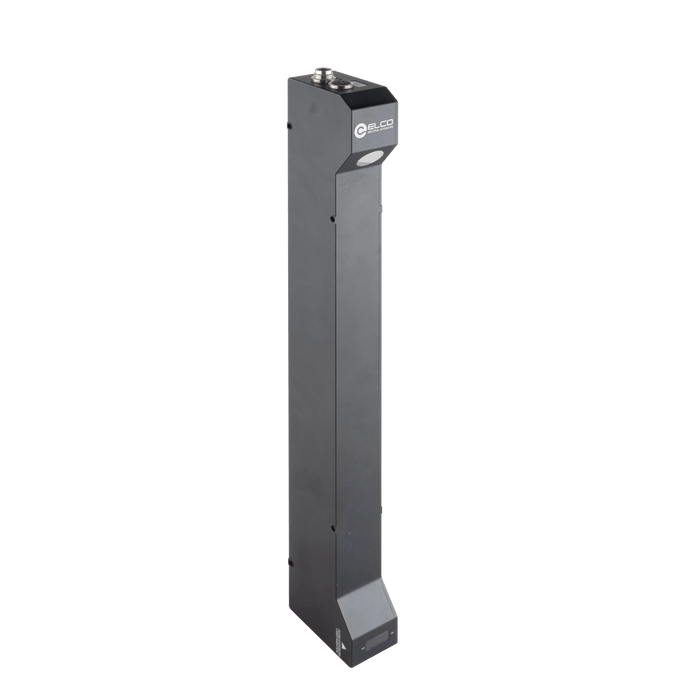

3D Laser profile sensor, LVM24 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 473.7 ... 791.2 mm, FOV 257.4 ... 480.7 mm,Data points 3200, Scan rate 1500 ... 20000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

LVM2490

SKU LVM2490
by ELCO Industrial Automation

3D Laser profile sensor, LVM24 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 473.7 ... 791.2 mm, FOV 257.4 ... 480.7 mm,Data points 3200, Scan rate 1500 ... 20000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

$16,615.70 - $16,615.70
$16,615.70
$16,615.70 - $16,615.70
$16,615.70
Availability:
In stock

3D Laser profile sensor, LVM24 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 473.7 ... 791.2 mm, FOV 257.4 ... 480.7 mm,Data points 3200, Scan rate 1500 ... 20000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Linearity(z axis) ±0.02% of MR
Dimensions 48 × 87.5 × 560 mm
Weight 1.98 kg
Housing material Aluminium alloy
Temperature characteristic ±0.01% of MR
Inputs Time trigger, Differential encoder
Outputs 2 digital outputs, 1 analog output
Communication protocol ModbusTCP, PROFINET, ASCII, EtherNet/IP

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet DS_CS_LVM2490_V1.1_EN.pdf
3D Drawing CAD_CS_LVM2490_3D_V1.0.stp
Manual UM_CS_LVM24_V1.0_EN.pdf
Configuration application Software_CS_LVM2 Series_V2.6.0.1_ML.zip
