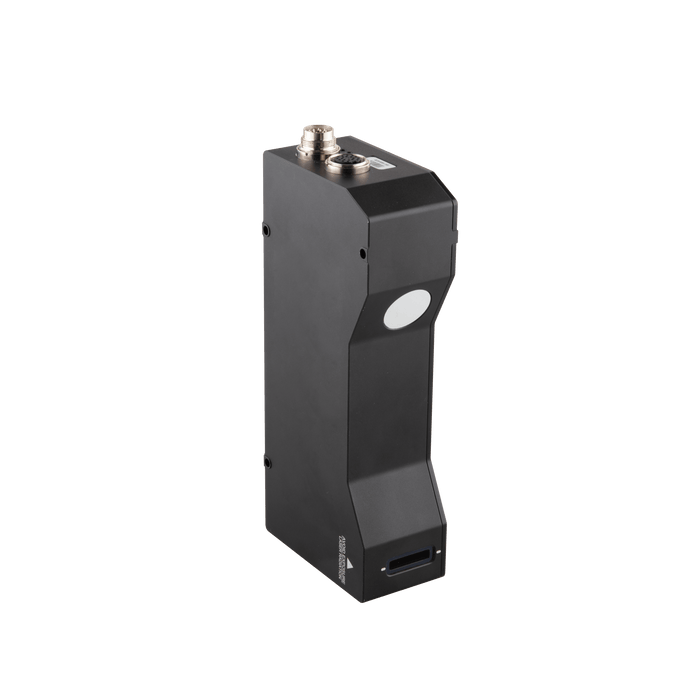

3D Laser profile sensor, LVM24 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 176 ... 328 mm, FOV 115.8 ... 190 mm,Data points 3200, Scan rate 1500 ... 20000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Data points 3200
Clearance distance 176.0 mm
Measurement range 152.0 mm
Field of view 115.8 ... 190.0 mm
Laser wavelength 405 nm
Scan rate 1500 ... 20000 Hz
Resolution(x axis) 36.2 ... 59.4 μm
Repeatability(z axis) 1.0 μm
Linearity(z axis) ±0.02% of MR
Dimensions 48 × 87.5 × 195.5 mm
Weight 0.76

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet DS_CS_LVM2460_V1.1_EN.pdf
3D Drawing CAD_CS_LVM2460_3D_V1.0.stp
Manual UM_CS_LVM24_V1.0_EN.pdf
Configuration application Software_CS_LVM2 Series_V2.6.0.1_ML.zip
