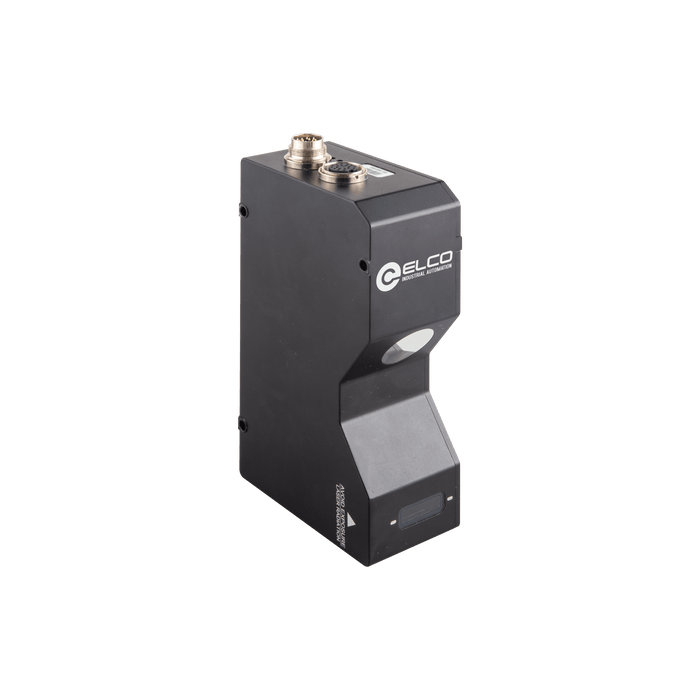

3D Laser profile sensor, LVM24 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 60.7 ... 103.2 mm, FOV 51.4 ... 69.4 mm,Data points 3200, Scan rate 1500 ... 20000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

LVM2440

SKU LVM2440
by ELCO Industrial Automation

3D Laser profile sensor, LVM24 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 60.7 ... 103.2 mm, FOV 51.4 ... 69.4 mm,Data points 3200, Scan rate 1500 ... 20000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

$16,615.70 - $16,615.70
$16,615.70
$16,615.70 - $16,615.70
$16,615.70
Availability:
In stock

3D Laser profile sensor, LVM24 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 60.7 ... 103.2 mm, FOV 51.4 ... 69.4 mm,Data points 3200, Scan rate 1500 ... 20000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Data points 3200
Clearance distance 60.7 mm
Measurement range 42.5 mm
Field of view 51.4 ... 69.4 mm
Laser wavelength 405 nm
Scan rate 1500 ... 20000 Hz
Resolution(x axis) 16.1 ... 21.7 μm
Repeatability(z axis) 0.4 μm
Linearity(z axis) ±0.02% of MR
Dimensions 48 × 87.5 × 150.5 mm
Weight 0.67 kg;

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet DS_CS_LVM2440_V1.1_EN.pdf
3D Drawing CAD_CS_LVM2440_3D_V1.0.stp
Manual UM_CS_LVM24_V1.0_EN.pdf
Configuration application Software_CS_LVM2 Series_V2.6.0.1_ML.zip
