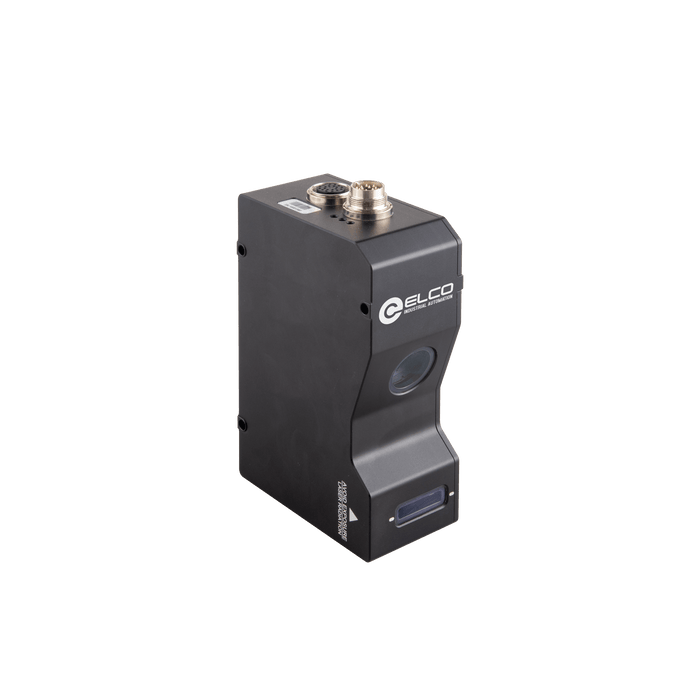

3D Laser profile sensor, LVM24 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 132 ... 165 mm, FOV 41.2 ... 51.7 mm,Data points 3200, Scan rate 1500 ... 20000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Data points 3200
Clearance distance 132.0 mm
Measurement range 33.0 mm
Field of view 41.2 ... 51.7 mm
Laser wavelength 650 nm
Scan rate 1500 ... 20000 Hz
Resolution(x axis) 12.9 ... 16.2 μm
Repeatability(z axis) 0.6 μm
Linearity(z axis) ±0.05% of MR
Dimensions 48 × 87.5 × 130.5 mm
Weight 0.64 kg

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet DS_CS_LVM2435_V1.1_EN.pdf
3D Drawing CAD_CS_LVM2435_3D_V1.0.stp
Manual UM_CS_LVM24_V1.0_EN.pdf
Configuration application Software_CS_LVM2 Series_V2.6.0.1_ML.zip
