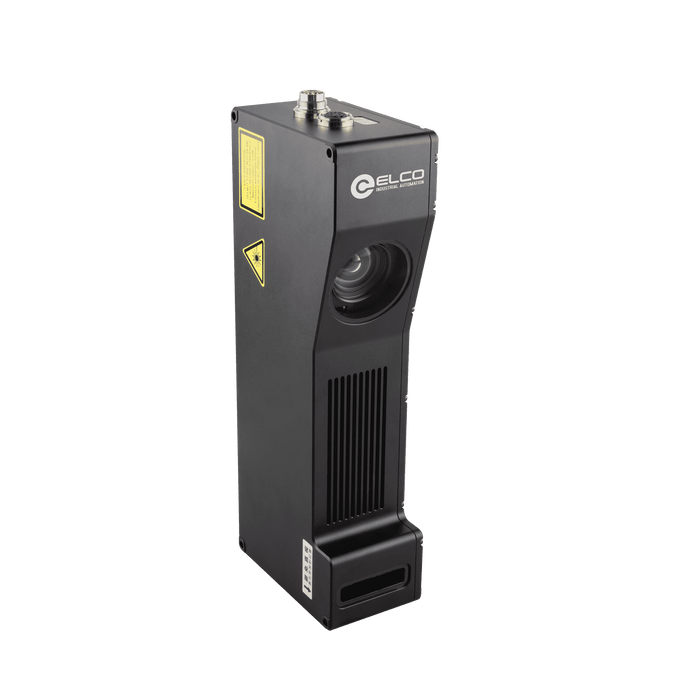

3D Laser profile sensor, LVM23 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 357.6 ... 1933.8 mm, FOV 521.2 ... 2390.4mm,Data points 4200, Scan rate 316 ... 12000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

LVM2390

SKU LVM2390
by ELCO Industrial Automation

3D Laser profile sensor, LVM23 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 357.6 ... 1933.8 mm, FOV 521.2 ... 2390.4mm,Data points 4200, Scan rate 316 ... 12000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

$16,257.78 - $16,257.78
$16,257.78
$16,257.78 - $16,257.78
$16,257.78
Availability:
In stock

3D Laser profile sensor, LVM23 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 357.6 ... 1933.8 mm, FOV 521.2 ... 2390.4mm,Data points 4200, Scan rate 316 ... 12000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Communication protocol ModbusTCP, PROFINET, ASCII, EtherNet/IP
Repeatability(z axis) 12 μm
Laser wavelength 405 nm
Dimensions 57 × 111 × 280 mm
Storage temperature -30 ... +70 ℃
IP rating IP67
Inputs Time trigger, Differential encoder
Weight 2.06 kg
Scan rate 316 ... 12000 Hz
Ambient temperature 0

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet ELCO_LVM2390_DataSheet_EN.pdf
Datasheet ELCO_LVM2390_DataSheet_CN.pdf
3D Drawing ELCO_LVM2390.step
Manual ELCO_3D sensor_Manual_EN.pdf
Manual ELCO_3D sensor_Manual_CN.pdf
Configuration application LVM-V2.5.0.14-Setup.zip
