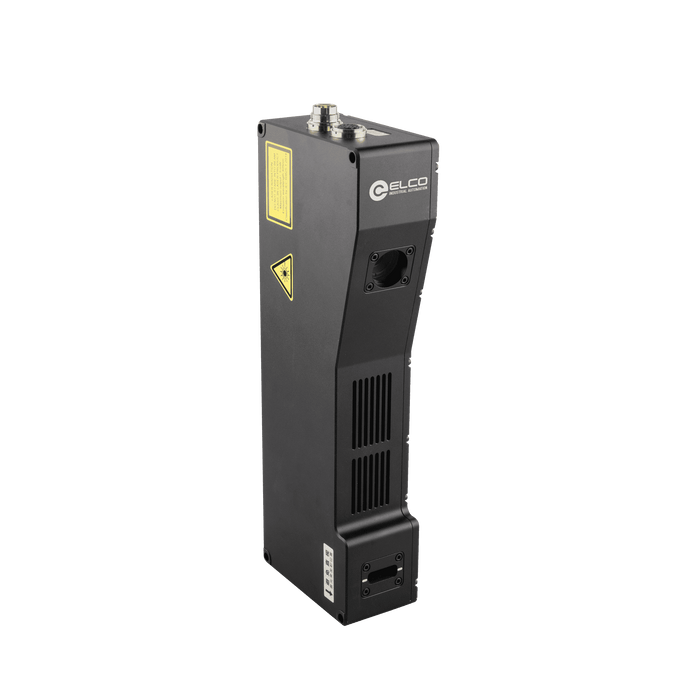

3D Laser profile sensor, LVM23 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 495.8 ... 1548.4 mm, FOV 282.4 ... 817.2 mm,Data points 4200, Scan rate 316 ... 12000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

LVM2370-L

SKU LVM2370-L
by ELCO Industrial Automation

3D Laser profile sensor, LVM23 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 495.8 ... 1548.4 mm, FOV 282.4 ... 817.2 mm,Data points 4200, Scan rate 316 ... 12000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

$16,257.78 - $16,257.78
$16,257.78
$16,257.78 - $16,257.78
$16,257.78
Availability:
In stock

3D Laser profile sensor, LVM23 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 495.8 ... 1548.4 mm, FOV 282.4 ... 817.2 mm,Data points 4200, Scan rate 316 ... 12000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Communication protocol ModbusTCP, PROFINET, ASCII, EtherNet/IP
Temperature characteristic ±0.01% of MR
IP rating IP67
Housing material Aluminium alloy
Storage temperature -30 ... +70 ℃
Inputs Time trigger, Differential encoder
Weight 1.78 kg
Scan rate 316 ... 12000 Hz
Laser wavelength 405 nm

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet ELCO_LVM2370-L_DataSheet_EN.pdf
Datasheet ELCO_LVM2370-L_DataSheet_CN.pdf
3D Drawing ELCO_LVM2370-L.step
Manual ELCO_3D sensor_Manual_EN.pdf
Manual ELCO_3D sensor_Manual_CN.pdf
Configuration application LVM-V2.5.0.14-Setup.zip
