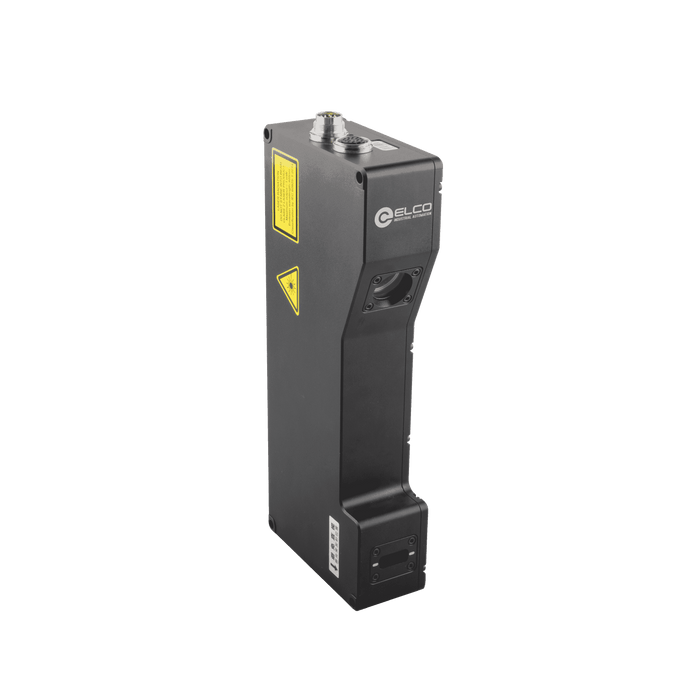

3D Laser profile sensor, LVM22 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 274 ... 630 mm, FOV 147 ... 291 mm,Data points 2048, Scan rate 240 ... 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

LVM2250

SKU LVM2250
by ELCO Industrial Automation

3D Laser profile sensor, LVM22 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 274 ... 630 mm, FOV 147 ... 291 mm,Data points 2048, Scan rate 240 ... 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

$14,891.39 - $14,891.39
$14,891.39
$14,891.39 - $14,891.39
$14,891.39
Availability:
In stock

3D Laser profile sensor, LVM22 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 274 ... 630 mm, FOV 147 ... 291 mm,Data points 2048, Scan rate 240 ... 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Communication protocol ModbusTCP, PROFINET, ASCII, EtherNet/IP
Measurement range 356 mm
Ambient temperature 0 ... +50 ℃
Storage temperature -30 ... +70 ℃
IP rating IP67
Inputs Time trigger, Differential encoder
Weight 1.48 kg
Repeatability(z axis) 1.5 μm
Scan rate 240 ... 5000 Hz
Ambient light Inc

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet ELCO_LVM2250_DataSheet_EN.pdf
Datasheet ELCO_LVM2250_DataSheet_CN.pdf
3D Drawing ELCO_LVM2250.step
Manual ELCO_3D sensor_Manual_EN.pdf
Manual ELCO_3D sensor_Manual_CN.pdf
Configuration application LVM-V2.5.0.14-Setup.zip
