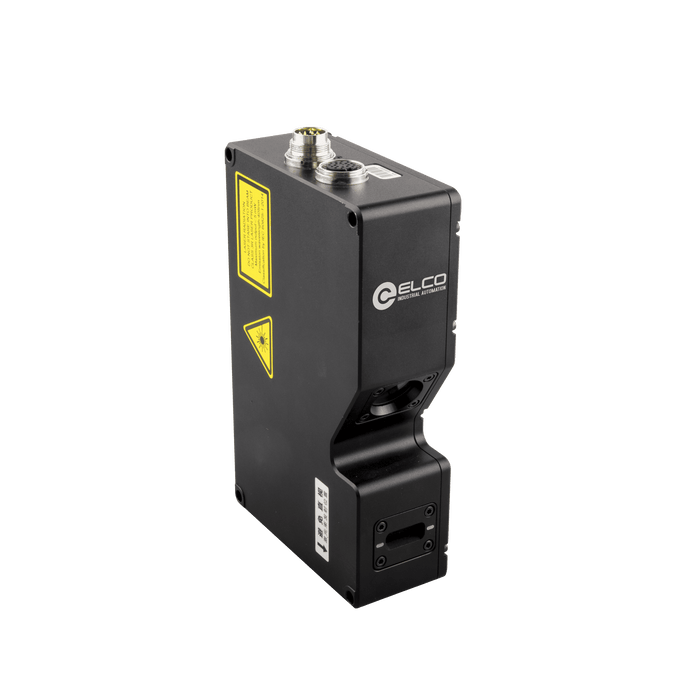

3D Laser profile sensor, LVM22 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 67 ... 135 mm, FOV 48 ... 72 mm,Data points 2048, Scan rate 240 ... 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

LVM2230

SKU LVM2230
by ELCO Industrial Automation

3D Laser profile sensor, LVM22 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 67 ... 135 mm, FOV 48 ... 72 mm,Data points 2048, Scan rate 240 ... 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

$14,891.39 - $14,891.39
$14,891.39
$14,891.39 - $14,891.39
$14,891.39
Availability:
In stock

3D Laser profile sensor, LVM22 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 67 ... 135 mm, FOV 48 ... 72 mm,Data points 2048, Scan rate 240 ... 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Linearity(z axis) ±0.01% of MR
Ambient temperature 0 ... +50 ℃
Storage temperature -30 ... +70 ℃
IP rating IP67
Inputs Time trigger, Differential encoder
Weight 0.92 kg
Communication protocol ModbusTCP, PROFINET, ASCII, EtherNet/IP
Ambient light Incandescent lamp: less than 10000 lux
Outputs 2 digit

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet ELCO_LVM2230_DataSheet_EN.pdf
Datasheet ELCO_LVM2230_DataSheet_CN.pdf
3D Drawing ELCO_LVM2230.step
Manual ELCO_3D sensor_Manual_EN.pdf
Manual ELCO_3D sensor_Manual_CN.pdf
Configuration application LVM-V2.5.0.14-Setup.zip
