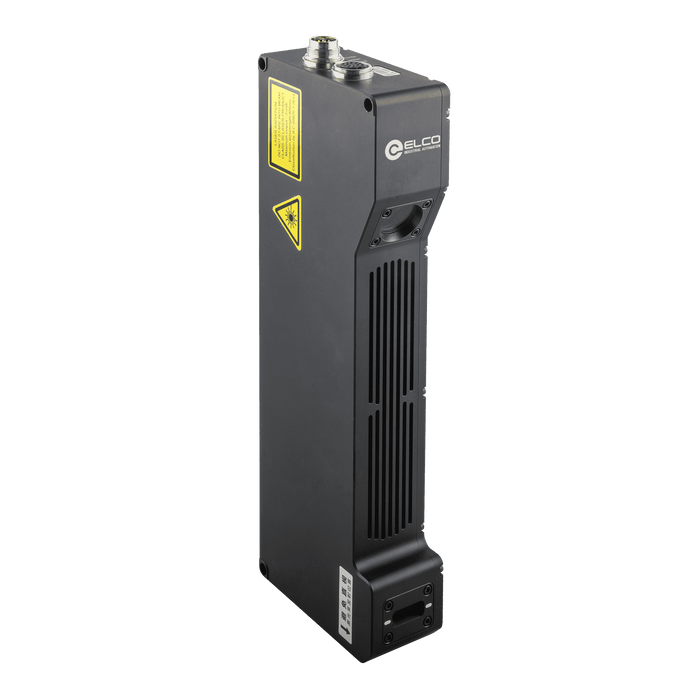

3D Laser profile sensor, LVM21 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 291 ... 659 mm, FOV 144 ... 272 mm,Data points 1456, Scan rate 270 ... 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Measurement range 368 mm
Communication protocol ModbusTCP, PROFINET, ASCII, EtherNet/IP
IP rating IP67
Storage temperature -30 ... +70 ℃
Inputs Time trigger, Differential encoder
Weight 1.45 kg
Scan rate 270 ... 5000 Hz
Laser wavelength 405 nm
Ambient temperature 0 ... +50 ℃
Ambient light Incandes

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet ELCO_LVM2150_DataSheet_EN.pdf
Datasheet ELCO_LVM2150_DataSheet_CN.pdf
3D Drawing ELCO_LVM2150.step
Manual ELCO_3D sensor_Manual_EN.pdf
Manual ELCO_3D sensor_Manual_CN.pdf
Configuration application LVM-V2.5.0.14-Setup.zip
