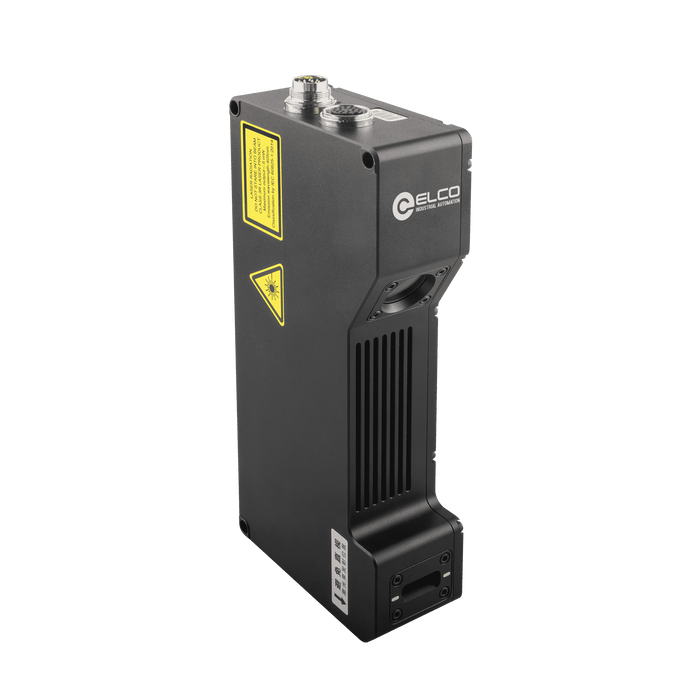

3D Laser profile sensor, LVM21 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 162 ... 357 mm, FOV 90 ... 156 mm,Data points 1456, Scan rate 270 ... 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

LVM2140

SKU LVM2140
by ELCO Industrial Automation

3D Laser profile sensor, LVM21 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 162 ... 357 mm, FOV 90 ... 156 mm,Data points 1456, Scan rate 270 ... 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

$13,524.99 - $13,524.99
$13,524.99
$13,524.99 - $13,524.99
$13,524.99
Availability:
In stock

3D Laser profile sensor, LVM21 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 162 ... 357 mm, FOV 90 ... 156 mm,Data points 1456, Scan rate 270 ... 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Communication protocol ModbusTCP, PROFINET, ASCII, EtherNet/IP
Storage temperature -30 ... +70 ℃
IP rating IP67
Inputs Time trigger, Differential encoder
Weight 1.05 kg
Scan rate 270 ... 5000 Hz
Laser wavelength 405 nm
Ambient temperature 0 ... +50 ℃
Ambient light Incandescent lamp: less than 10000

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet ELCO_LVM2140_DataSheet_EN.pdf
Datasheet ELCO_LVM2140_DataSheet_CN.pdf
3D Drawing ELCO_LVM2140.step
Manual ELCO_3D sensor_Manual_EN.pdf
Manual ELCO_3D sensor_Manual_CN.pdf
Configuration application LVM-V2.5.0.14-Setup.zip
